ELAC BS 182

AudioStereo logo
ELAC BS 182 photo gallery
ELAC BS 182 photos

900 > €710

  << variante >>
ELAC BS 184
ATC SCM 7 disponibile in Demo
XAVIAN NEOX1
BS 184 NEOX1

ELAC BS 182 - Vi-Fi (Netherlands) review ELAC BS 182 - Hifi Video Test (Netherlands) review

ELAC BS 184 - JET tweeter
  • TT135AS: difuzor midbass cu membrana sandwich hartie-aluminiu
  • JET III: tweeter cu tehnologie Air-Motion-Transformer (folded foil)
  • DC ring (JET Dispersion Control): inel pentru controlul dispersiei ce se monteaza in jurul tweeterului JET (accesoriu optional)
BS 182, down-firing in the compact speaker class!

With the BS 182 ELAC is introducing down-firing into the compact speaker class for the first time. With its downwards oriented bass reflex tube and integrated base plate, the BS 182 is especially suitable for use on a sideboard or shelf. The irresistible compact speaker is also visually very appealing, with its base plate and chromed spacers.
ELAC LS 70 & ELAC FS 70 II speaker stand Available as an accessory: the LS 70 stand is perfectly suited for this loudspeaker. Metal protections inserted on the loudspeaker base exactly fit the three spikes on the upper plate. In addition there is a screw fastening the loudspeaker to the stand offering better stability and increased safety.
Specifications
Dimensions H × W × D
290 × 160 × 250 (262) mm Details
Weight
5.5 kg
Principle
2-ways, bass reflex
Woofer
Bass Port
1 × 135 mm AS cone
1 × 45 mm (down firing)
Tweeter
1 × JET III, (mag. shielded)
Recom. Amplifier Power
at Nominal Impedance
20-140 W / channel
Crossover Frequency
2,500 Hz
Sensitivity
86 dB / 2.83 V / 1 m
Nominal Impedance
suitable for amplifiers (from ... to)
6 Ω
4 ... 8 Ω
Minimum Impedance
4,9 Ω at 250 Hz
Frequency Range
acc. to IEC 268-5
46 ··· 50,000 Hz
Nominal / Peak Power Handling
60 / 80 W
Finishes
white painted silk matt
black painted silk matt

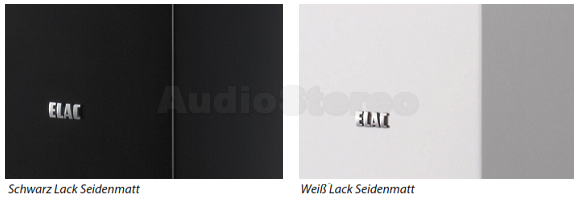

ELAC 180 Series satin finishes
ELAC BS 184 brochure

Treble Unit

ELAC JET III tweeter used in all 180 Series range

JET III used in all 180 Series range.

The folded foil membrane arrangement in the world famous JET-tweeter is driven by a powerful neodymium magnet system. it plays effortlessly anf free from resonance, breezy and transparent up to 50,000 Hz and is, with its maximum linear frequency response, especially suited to sound reproduction of DV-A and SACD formats.

ELAC JET DC (Dispersion Control) ring

The ELAC "JET Dispersion Control DC" is a flat ring made of open-cell rubber foam which is mounted around the JET orifice with four clasps (or with adhesive tape).

The JET DC results in a broadband reduction of about 0.5 dB of the radiated sound level nearly independent of frequency. The JET DC is best suited for rooms with little sound absorption at high frequencies, especially for rooms with large windows without curtains or with a smooth floor without a carpet.

Note: The loudspeakers of the 180 series are not supplied with the JET Dispersion Control - it is an optional accessory.



Midbass Unit

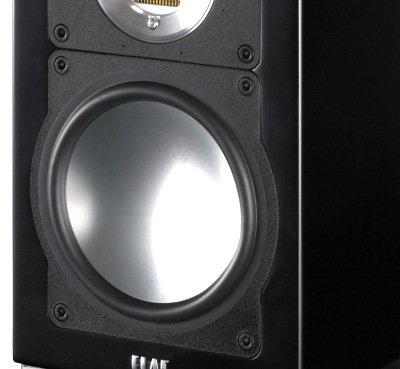

ELAC BS 182 - TT 135 AS midbass driver

TT 135 AS midbass used in BS 182 and CC 180

Extremely deep bass, low coloration and accurate sound reproduction are achieved with ELAC's aluminium sandwich membrane woofers. An ELAC specialty: during a special gluing procedure a 0.2 mm thick aluminium layer is combined with a cellulose cone forming the sandwich membrane. This membrane technology results in an extremely stiff membrane that eliminates partial vibrations.
