• TT180AS-XR: difuzor midbass cu membrana sandwich hartie-aluminiu "Crystal"
• JET III: tweeter cu tehnologie Air-Motion-Transformer (folded foil)
• DC ring (JET Dispersion Control): inel pentru controlul dispersiei ce se monteaza in jurul tweeterului JET (accesoriu optional)

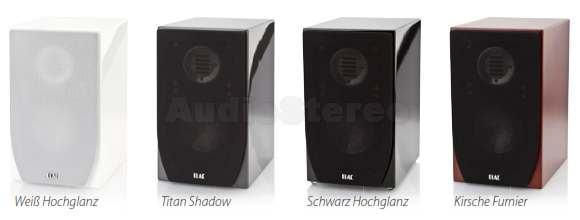

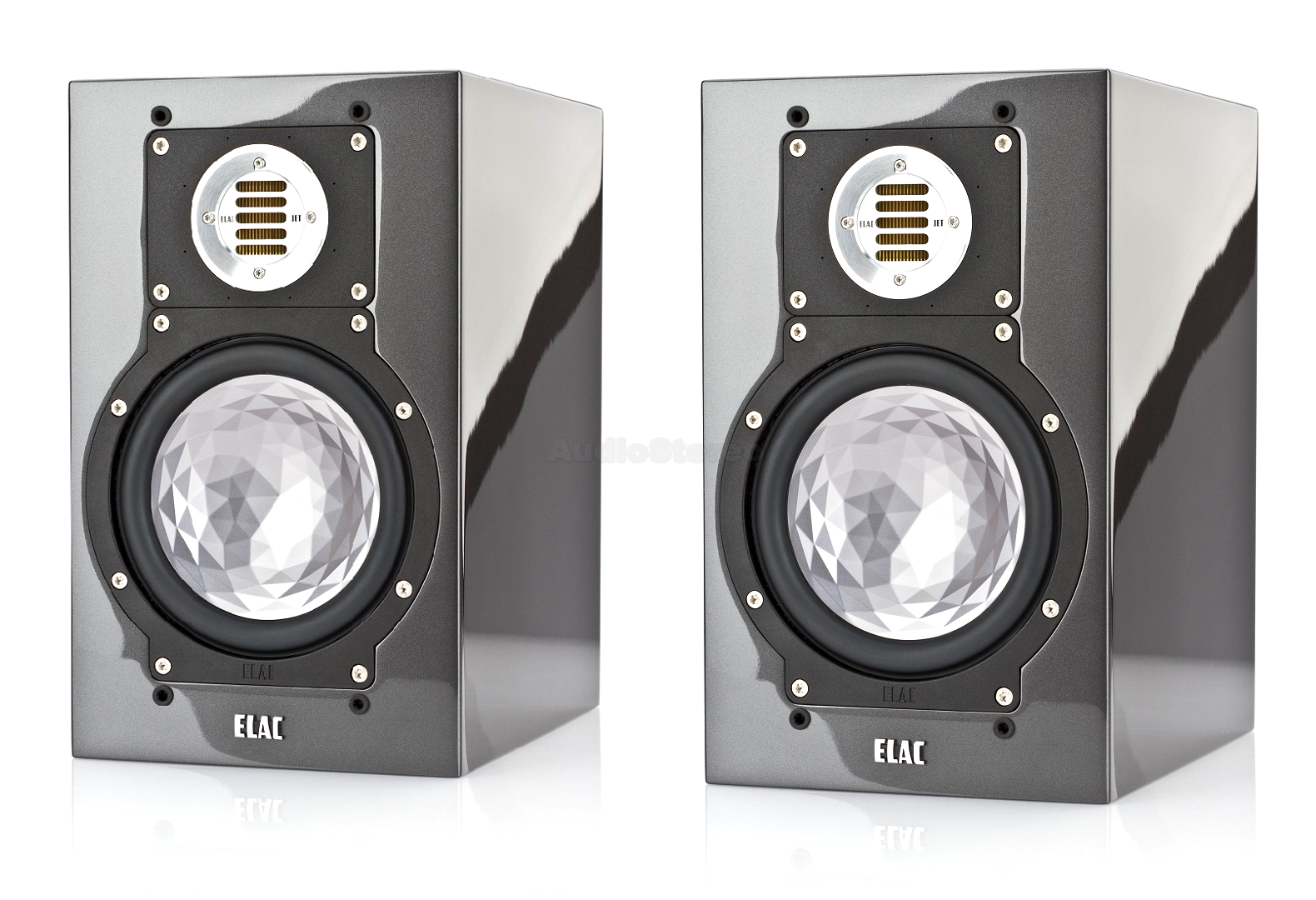

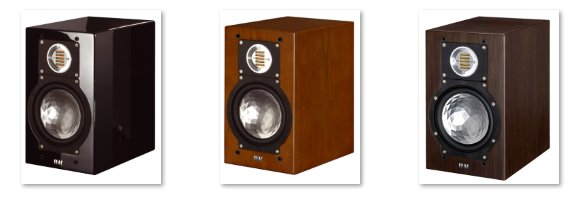

BS 244: placere pura

BS 244 inglobeaza toata stiinta si toate virtutile lungii traditii ELAC in designul incintelor compacte. De multi ani tinta inginerilor ELAC a fost reproducerea "celui mai mare sunet posibil" dintr-o incinta cat mai compacta.

BS 244 este o incinta acustica deplin matura ce poate fi plasata pe un stand dedicat sau pe un suport care sa permita desfasurarea sunetului sau plin. Cand este plasata in apropierea peretelui sau pe un raft, se recomanda in majoritatea cazurilor inchiderea tubului bass reflex cu bungul din dotare.

Standul LS 70 este disponibil ca accesoriu perfect adaptat acestei incinte acustice (protectiile metalice inserate in baza incintei se potrivesc exact pe cele trei spike-uri ale standului; in plus fixare de siguranta cu surub)

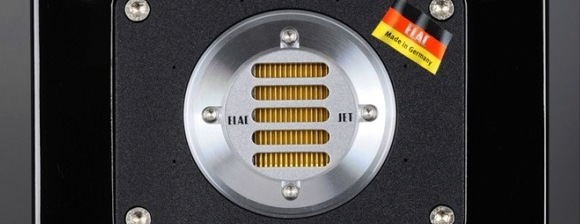

Treble Unit

JET III used in all 240 Series range.

The ELAC JET tweeter is one of the most legendary tweeters in the hi-fi trade and has won international renown with its unusual transparent and effortless sound image.

The JET tweeter was delveloped to perfection on the basis of the famous 'Air Motion Transformer' by loudpseaker pioneer Dr Oskar Heil. Its principle: a concertinaed foil membrane is driven by a strong magnet system of neodymium rods.

This 'motor' drives the air considerably faster than the conventional pistonic technique. High sensitivity and extraordiary dynamics are the result. Due to continuous improvement, the JET III tweeter now creates an effortless and airy resonance-free image up to 50,000 Hz, and with its linear frequency response is ideally suited for the reproduction of DVD-A and SACD.

	The ELAC "JET Dispersion Control DC" is a flat ring made of open-cell rubber foam which is mounted around the JET orifice with four clasps (or with adhesive tape). The JET DC results in a broadband reduction of about 0.5 dB of the radiated sound level nearly independent of frequency. The JET DC is best suited for rooms with little sound absorption at high frequencies, especially for rooms with large windows without curtains or with a smooth floor without a carpet. All loudspeakers of the 240 series are supplied with the JET Dispersion Control as an accessory.

Midbass Unit

TT 180 AS-XR midbass used in: BS 244, CC 241, FS 249.

All woofers and midrange drivers of the 240 series contain the new "Crystal Membrane" (patent pending) and their design is based on the well-known "Aluminium-Sandwich AS Technology" which was developed by ELAC a couple of years ago. The crystal-shaped inverse aluminium dome is joined to the paper cone in a special glueing process resulting the desired sandwich construction.

The stamping of the aluminium foil looks like the surface of a large crystal, this is where the term "Crystal Membrane" come from. This stamping stiffens the aluminium dome considerably which diminishes the membrane-internal resonances resulting in less sound coloration and additionally improves the large signal behaviour noticeably.
The voice coil is not only - like usually - joined to the neck of the paper cone but also to the bottom of the aluminium dome. This design results in the expansion of the transmission range of the respective woofers or midrange drivers by nearly an octave. Therefore the abbreviation "XR" (eXtended Range) has been introduced.

Due to the specially wide double asymmetrical ('DAS') rubber surround, ELAC's TT 180 woofer can handle up to ±15mm long stroke. This provides maximum level supply and mellow low bass. For a driver this size, such a large displacement represent a unique engineering achievement.
