ELAC BS 244 Black Edition

AudioStereo logo

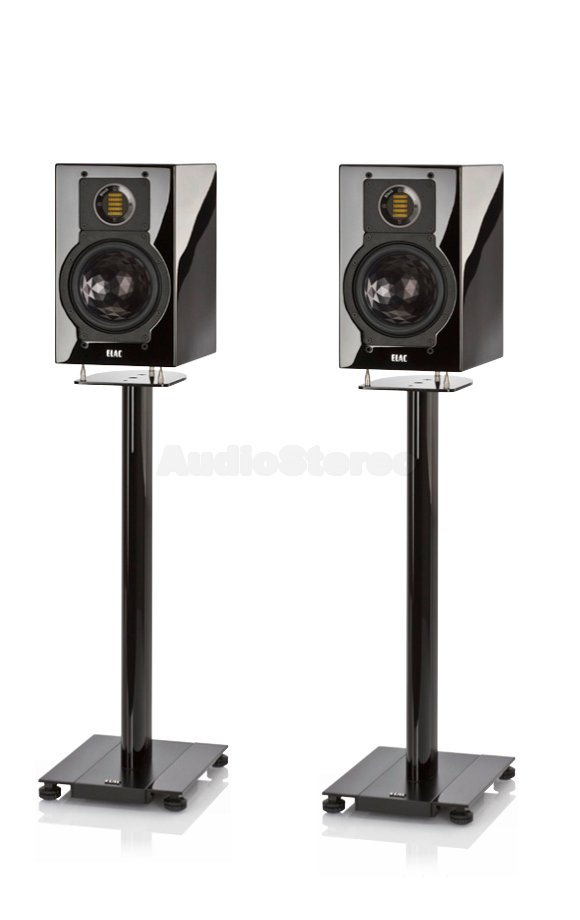

ELAC BS 244 Black Edition - i-fidelity speaker pair
1600
call
  << variante >>
ELAC 330 CE ATC SCM 20 SL XAVIAN XN 270
330 CE XN 270 Evo

ELAC BS 244 Black Edition - i-fidelity (Germany) review ELAC BS 244 - AUDIO Poland review
ELAC BS 244 - AUDIO (Germany) review
ELAC BS 244 - Stereoplay (Germany) review
ELAC BS 244 - REVUE DU SON Nr.337 - 5 Etoiles/ Recommande: Qualité/Prix : 5 sur 5, « Recommandé »
ELAC BS 244 - Hi-Fi.ru (Russia) review verdict
ELAC BS 244 - Stereo&Video (Russia) review ELAC BS 244 - Hifi Video Test (Netherlands) review
ELAC BS 244 - AudioVideo Poland test result
ELAC 240 Black Edition tweeter detail
  • TT180AS-XR: difuzor midbass cu membrana sandwich hartie-aluminiu "Crystal"
  • JET III: tweeter cu tehnologie Air-Motion-Transformer (folded foil) Black Edition
  • DC ring (JET Dispersion Control): inel pentru controlul dispersiei ce se monteaza in jurul tweeterului JET

BS 244 Black Edition: The powerhouse in the compact segment with an amazing bandwidth

A powerhouse among compact speakers, with amazing range: with impressive bass, crystal-clear treble and authentic voice reproduction. Complete in every respect.
ELAC LS 70 & ELAC FS 70 II speaker stand Available as an accessory: the LS 70 stand is perfectly suited for this loudspeaker. Metal protections inserted on the loudspeaker base exactly fit the three spikes on the upper plate. In addition there is a screw fastening the loudspeaker to the stand offering better stability and increased safety.
Specifications
Dimensions H × W × D
330 × 200 × 270 (282) mm Details
Gross Volume
18.6 l
Weight
8.5 kg
Principle
2-ways, bass reflex
Woofer
Bass Ports
1 × 180 mm AS-XR cone
1 × 60 mm (with Bass Control Plug)
Tweeter
1 × JET III (mag. shielded)
Recom. Amplifier Power
at Nominal Impedance
30-200 W / channel
Crossover Frequency
2,600 Hz
Sensitivity
88 dB / 2.83 V / 1 m
Nominal Impedance
suitable for amplifiers (from ... to)
4 Ohm
4 ... 8 Ohm
Minimum Impedance
3.5 Ohm / 190 Hz
Frequency Range
acc. to IEC 268-5
38 ··· 50,000 Hz
Nominal / Peak Power Handling
80 / 120 W
Finishes
black high gloss
ELAC BS 244 Black Edition brochure

Treble Unit

ELAC 244 Black Edition JET III tweeter

The ELAC JET tweeter is one of the most legendary tweeters in the hi-fi trade and has won international renown with its unusual transparent and effortless sound image.

The JET tweeter was delveloped to perfection on the basis of the famous 'Air Motion Transformer' by loudpseaker pioneer Dr Oskar Heil. Its principle: a concertinaed foil membrane is driven by a strong magnet system of neodymium rods.

This 'motor' drives the air considerably faster than the conventional pistonic technique. High sensitivity and extraordiary dynamics are the result. Due to continuous improvement, the JET III tweeter creates an effortless and airy resonance-free image up to 50,000 Hz, and with its linear frequency response is ideally suited for the reproduction of Hi-Res Audio music.

Note: The loudspeakers of the 240 BE Series are supplied with the JET Dispersion Control as an accessory. The ELAC "JET Dispersion Control DC" is a flat ring made of open-cell rubber foam which is mounted around the JET orifice with four clasps (or with adhesive tape). The JET DC results in a broadband reduction of about 0.5 dB of the radiated sound level nearly independent of frequency. The JET DC is best suited for rooms with little sound absorption at high frequencies, especially for rooms with large windows without curtains or with a smooth floor without a carpet.



Midbass Unit

TT 180 AS-XR black anodized diaphragm midbass used in: BS 244 BE and FS 249 BE.

The woofers drivers of the 240 BE series contain the new "Crystal Membrane" (patent pending) and their design is based on the well-known "Aluminium-Sandwich AS Technology" which was developed by ELAC a couple of years ago. The crystal-shaped inverse aluminium dome is joined to the paper cone in a special glueing process resulting the desired sandwich construction.

The stamping of the aluminium foil looks like the surface of a large crystal, this is where the term "Crystal Membrane" come from. This stamping stiffens the aluminium dome considerably which diminishes the membrane-internal resonances resulting in less sound coloration and additionally improves the large signal behaviour noticeably.

The voice coil is not only - like usually - joined to the neck of the paper cone but also to the bottom of the aluminium dome. This design results in the expansion of the transmission range of the respective woofers or midrange drivers by nearly an octave. Therefore the abbreviation "XR" (eXtended Range) has been introduced.

Due to the specially wide double asymmetrical ('DAS') rubber surround, ELAC's TT 180 woofer can handle up to ±15mm long stroke. This provides maximum level supply and mellow low bass. For a driver this size, such a large displacement represent a unique engineering achievement.

ELAC BS 244  Black Edition Crystal midbass - TT 150 AS-XR midbass driver
