• TT135AS: difuzor midbass cu membrana sandwich hartie-aluminiu
• Tweeter dome matase tratata 25mm

All the world's a stage - unfortunately, not many loudspeakers manage to show it. This is no problem for ELAC loudspeakers. The BS 62.2 actually manages to sound even bigger than it is. At a height of 26 cm they look small, but put on a big performance.

Treble Unit

Transparent sound is reproduced by this 25 mm tweeter consisting of a coated silk dome resulting in a smooth roll off at frequencies above 20,000 Hz without noticeable resonances. A special wave-guide together with the protection grille results its wide dispersion characteristics. Its extraordinary power handling capacity is resulting from two design features: the compact high efficiency neodymium magnetic system with cooling fins and the aluminium voice coil cooled by ferro-fluid. Additionally, the magnetic system is shielded preventing strange color distortions in a TV screen.

Midbass Unit

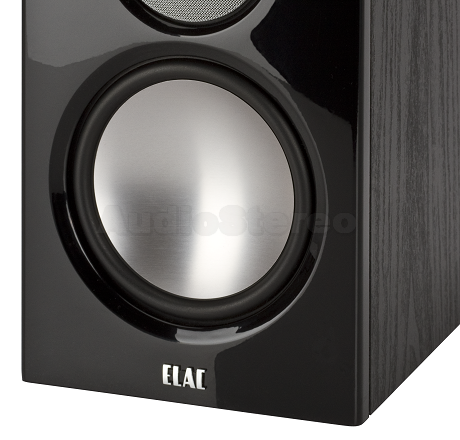

TT 135 AS midbass used in BS 62.2

The design of the woofers of the 60 series are also based on the aluminium-sandwich technique. The wide rubber surrounding and the aerodynamic optimised - providing best air-flow - frame together with the spider being vented at both sides result in an extra large maximum membrane excursion.
The 31mm diameter voice coil and the powerful magnetic system increase the force factor - more efficiency - and by this the load limit is increased and consequently the deficiency rate decreased.
