ELAC BS 63.2

AudioStereo logo

ELAC BS 63.2 photo gallery
ELAC 60.2 Series finishes

€470

  See also:
ELAC BS 182
ATC SCM 7 disponibile in Demo
XAVIAN NEOX1
BS 182 NEOX1

ELAC BS 63.2 - HiFi Test (Germany) review
  • TT175AS: difuzor midbass cu membrana sandwich hartie-aluminiu
  • Tweeter dome matase tratata 25mm

Scena sonora ampla, adancimea si precizia incintei compacte BS 63.2 uimesc - fie ca sunt plasate pe un raft fie ca se afla libere pe un stand dedicat. Pasionatii de hi-fi pretentiosi cat si adeptii home cinema vor fi multumiti de investitie datorita faptului ca incintele BS 63.2 ofera un sunet considerabil mai "mare" decat sunt ele in aparenta.

Datorita impedantei nominale lejere de 6 ohmi si a unei bune sensibilitati, incinta ofera performante deosebite si cu amplificatoare mai mici. BS 63.2 este cel mai bine adaptata camerelor de dimensiuni medii.

Specifications
Dimensions H × W × D
330 × 205 × 250 (265) mm Details
Weight
7 kg
Principle
2-ways, bass reflex
Woofer
Bass Port
1 × 175 mm AS cone
1 × 60 mm with Bass Control Plug
Tweeter
1 × 25 mm silk dome, (mag. shielded)
Recom. Amplifier Power
at Nominal Impedance
20-120 W / channel
Crossover Frequency
2,300 Hz
Sensitivity
88 dB / 2.83 V / 1 m
Nominal Impedance
suitable for amplifiers (from ... to)
6 Ω
4 ... 8 Ω
Minimum Impedance
4.9 Ω at 240 Hz
Frequency Range
acc. to IEC 268-5
44 ··· 25,000 Hz
Nominal / Peak Power Handling
60 / 80 W
Finishes
black ash
dark walnut
ELAC BS 63.2 brochure

Treble Unit

ELAC 60 Series Silk Tweeter

Transparent sound is reproduced by this 25 mm tweeter consisting of a coated silk dome resulting in a smooth roll off at frequencies above 20,000 Hz without noticeable resonances. A special wave-guide together with the protection grille results its wide dispersion characteristics.

Its extraordinary power handling capacity is resulting from two design features: the compact high efficiency neodymium magnetic system with cooling fins and the aluminium voice coil cooled by ferro-fluid.
Additionally, the magnetic system is shielded preventing strange color distortions in a TV screen.

Midbass Unit

TT 175 AS midbass used in BS 63.2 and FS 68.2.

The design of the woofers of the 60 series are also based on the aluminium-sandwich technique. The wide rubber surrounding and the aerodynamic optimised - providing best air-flow - frame together with the spider being vented at both sides result in an extra large maximum membrane excursion.
The 31mm diameter voice coil and the powerful magnetic system increase the force factor - more efficiency - and by this the load limit is increased and consequently the deficiency rate decreased.

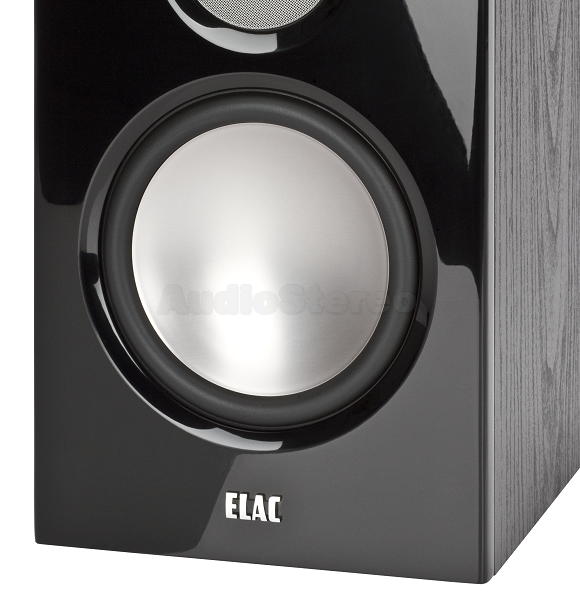

ELAC BS 63.2 - AS cone midbass - paper and aluminium
