4PI PLUS.2 (add-on super-tweeter)

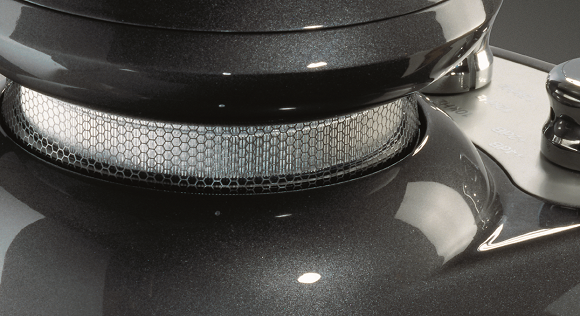

ELAC 4 Pi Plus.2 - add-on omnidirectional ribbon super-tweeter

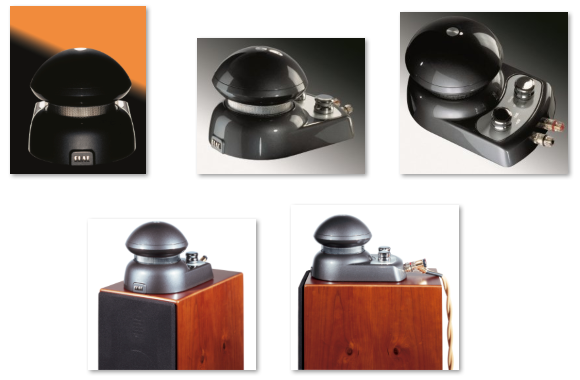

ELAC 4Pi Plus.2 - side view
ELAC 4Pi Plus.2 - top view


"Transparency and image placement were both improved, while the tonality and harmonics of mid and high-frequencies were both significantly better. Percussion detail was more natural, the nature of the instrument more apparent. But it was the texture and tonality in the lower-mid and bass that really impressed, with much greater definition and detail readily apparent. Dynamic speed, precision and substance were all improved along with the shape and duration of individual notes, making dynamic contrasts more emphatic and musically effective. This increase in presence extended across the entire range, brass in particular gaining body and a satisfyingly realistic rip to its tone. Overall timing was also improved with musical phrasing making more sense. [...] This ELAC super-tweter extends the performance available from existing speaker systems in a significant and musically imporlant way. High-frequency extension is no optional tweak - it's a musical necessity, making your system more natural and more naturally communicative."

hi-fi+ review, no.42 (December 2005)



Sunet perfect de jur-imprejur

Noul super-tweeter ribbon 4PI PLUS.2 este o componenta add-on capabila sa creeze o expresie sonora spatioasa, perfecta cand este instalat pe incintele acustice conventionale. Combinatia dintre o incinta cu radiatie directa - oferind o localizare si o imagine sonora precisa si super-tweeterul ribbon omnidirectional 4PI PLUS.2 - oferind un sunet aerisit si amplu, rezulta intr-o spatializare perfecta care nu se va regasi la nici o incinta acustica conventionala.

Reglaje optime ale frecventei de taiere si ale volumului sonor

4Pi Plus.2 ofera o retea integrata pentru reglarea perfecta a sensibilitatii sale, in 5 pasi (-4, -2, 0, +2, +4 dB), tocmai in scopul de a optimiza combinatia cu orice incinta acustica a carei sensibilitate se afla in intervalul 84 - 92 dB / 2,83 V / m. In plus frecventa inferioara de taiere a tweeterului 4Pi poate fi selectata dintre 3 valori (10, 12 si 15 kHz).

Specifications
Dimensions H × W × D
143 × 150 × 250 mm
Gross Volume
3 l
Weight
4 kg
Principle
1-way, add-on tweeter
Tweeter
Crossover Frequencies
10, 12, 15 kHz selectable
Sensitivity
84 - 92 dB / 2.83 V / 1 m
-4, -2, 0, +2, +4 dB selectable
Nominal Impedance
suitable for amplifiers (from ... to)
6 Ω
4 ... 8 Ω
Minimum Impedance
8 - 3.5 Ω at > 10,000 Hz
Frequency Range
acc. to IEC 268-5
(10,000) ··· 53,000 Hz
Nominal / Peak Power Handling
400 / 600 W
Finishes
black high gloss
titan shadow hg
ELAC 4Pi Plus.2 brochure
