ELAC FS 207 Anniversary Edition

AudioStereo logo
ELAC FS 207 A

1100

  << variante >>
ELAC FS 247 ATC SCM 19 XAVIAN XN Carisma Stereo Setup
FS 247 XN Carisma
ELAC FS 207 A - LYD & BILDE (Norway) review
ELAC FS 207.2 - Australian Hi-Fi (Australia) review

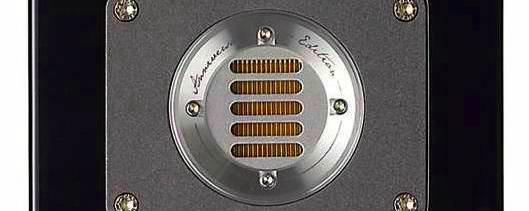

ELAC JET III Anniversary Edition tweeter
  • TT150AS: doua difuzoare midbass cu membrane sandwich hartie-aluminiu
  • JET III: tweeter cu tehnologie Air-Motion-Transformer (folded foil) Anniversary Edition

Hi-tech optic si acustic

Pentru a celebra aniversarea a 80 de ani de existenta, am introdus incinta acustica FS 207 intr-un nou design. Acesata incinta gratioasa de podea nu impresioneaza doar prin optica sa, fiind un produs perfectionat ca tehnologie si design. Acustica si filtrul crossover au fost optimizate cu ajutorul computerului si permit un patern acustic optim de directionalitate constanta. Acest lucru se aplica in intreaga banda de frecvente si are un efect pozitiv asupra redarii difuzoarelor midbass.

Specifications
Dimensions H × W × D
989 × 170 × 270 mm Details
220 × 320 mm base plate



Gross Volume
43 l
Weight
15 kg
Type
2½-ways, bass reflex
Woofer
Bass Ports
2 × 150 mm AS cone (mag. shielded)
2 × 60 mm with Bass Control Plug
Tweeter
1 × JET III (mag. shielded)
Recom. Amplifier Power
at Nominal Impedance
30-250 W / channel
Crossover Frequency
350 / 2,700 Hz
Sensitivity
89 dB / 2.83 V / 1 m
Nominal Impedance
suitable for amplifiers (from ... to)
4 Ohm
4 ... 8 Ohm
Minimum Impedance
3.4 Ohm / 220 Hz
Frequency Range
36 ··· 50,000 Hz
Nominal / Peak Power Handling
120 / 160 W
Finishes
black high gloss
white high gloss
ELAC FS 207 A brochure

Treble Unit

ELAC JET III tweeter used in all 180 Series range

The ELAC JET tweeter is one of the most legendary tweeters in the hi-fi trade and has won international renown with its unusual transparent and effortless sound image.

The JET tweeter was delveloped to perfection on the basis of the famous 'Air Motion Transformer' by loudpseaker pioneer Dr Oskar Heil. Its principle: a concertinaed foil membrane is driven by a strong magnet system of neodymium rods.

This 'motor' drives the air considerably faster than the conventional pistonic technique. High sensitivity and extraordiary dynamics are the result. Due to continuous improvement, the JET III tweeter creates an effortless and airy resonance-free image up to 50,000 Hz, and with its linear frequency response is ideally suited for the reproduction of Hi-Res Audio music.



Midbass Unit

TT 150 AS used in : BS 203 A, FS 207 A.

The woofers of the 200 Series are designed in the ELAC proprietary aluminium sandwich technique. In a special glueing procedure, an aluminium foil of 0.2mm is joint to a pulp fibre cone to form a sandwich membrane. The result: reduced partial oscillations, no distortions and an optimised large signal behaviour.

ELAC AS cone - paper-aluminium sandwich
