ATC SCM 20P SL Pro

AudioStereo logo
ATC SCM 20P SL Pro

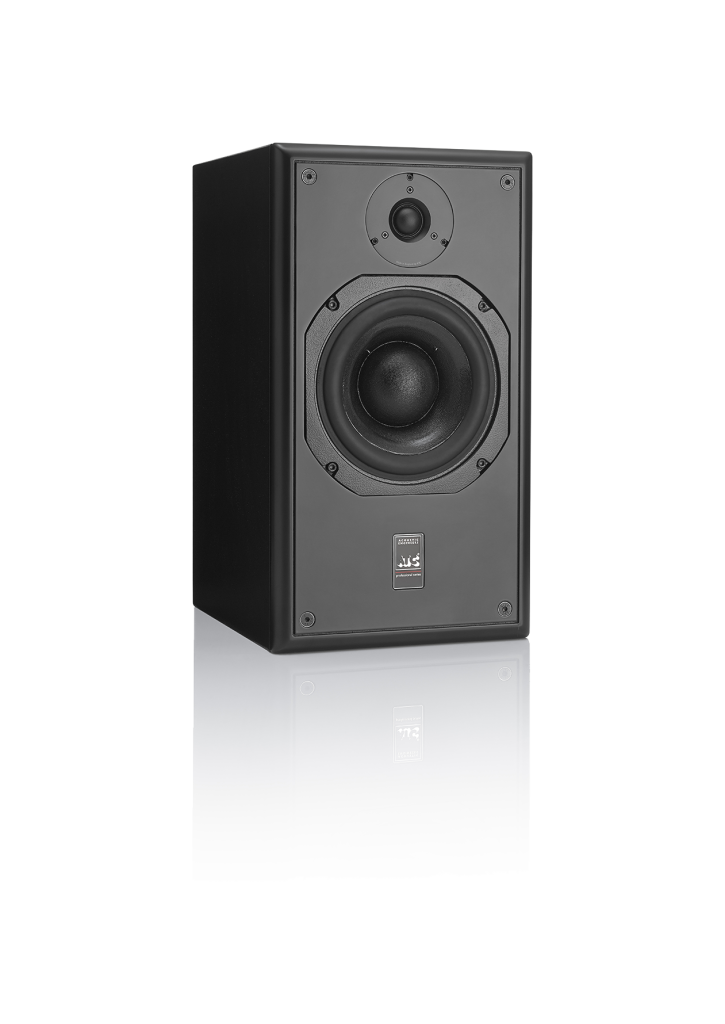

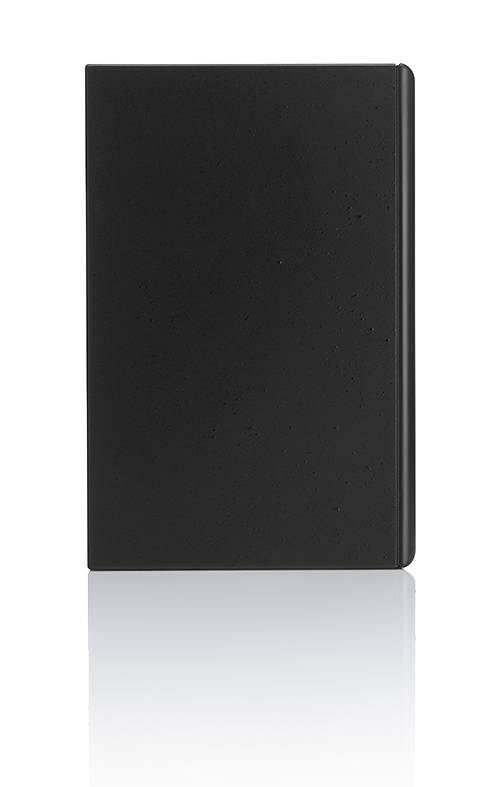

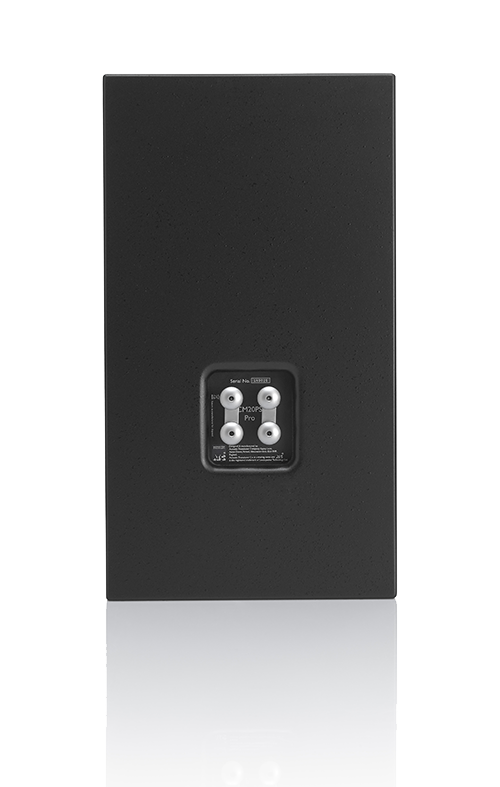

ATC SCM 20P SL Pro front ATC SCM 20P SL Pro side ATC SCM 20P SL Pro back
£2700
call

ATC SCM 20P SL Pro: high performance nearfield passive 2-way studio monitor

Ideally suited to critical nearfield listening applications in all control rooms, LCR surround monitoring in small-to-medium control rooms, and surround channels in medium-to-large control rooms, anyone looking to seriously improve their reference nearfield monitoring experience surely owe it to themselves and their studio setup to take a listen to the SCM20PSL Pro in action? EQ, balance, and edit faster, with more consistent results and reduced listening fatigue using the latest reference nearfields from ATC.

The cabinet has been restyled to more closely follow the larger monitors in ATC’s professional range and is constructed from heavily-braced MDF. Highly damped, elastometric panels are bonded and stapled to the cabinet’s inner walls to suppress cabinet panel resonances, while the enclosure’s front panel is heavily radiused to reduce cabinet diffraction, improving the frequency response and imaging. The loudspeaker can be wall mounted via a K&M 24120 Wall Mount (available separately). Note that the cabinet requires modification to accept the ‘top-hat’ mount.

ATC SCM 20P SL Pro Features:

  • Compact very high performance passive 2-way studio monitor
  • Ideally suited to:
    – critical near-field listening applications in all control rooms
    – LCR surround monitoring in small-to-medium control rooms
    – surround channels in medium-to-large contol rooms
  • ATC 195mm Super Linear midbass driver
  • ATC 25mm Dual Suspension ‘S-Spec’ tweeter
  • 9kg precision machined and optimised motor assembly
  • Heavily damped cabinet
  • 6 year warranty
ATC SCM 20P SL Pro Super Dome tweeter ATC SCM 20P SL Pro Super Linear midbass
25mm Dual Suspension ‘S-Spec’ Tweeter 195mm 'SL' Super Linear Mid/Bass

Specifications

Drivers: LF ATC 195mm Super Linear, HF ATC 25mm Dual-Suspension ‘S-Spec’ tweeter
Amplitude Linearity ±2dB: 80Hz – 20kHz
Cut-off Frequencies (-6dB, freestanding, no room gain):  55Hz – 25kHz
Dispersion : +/-80° coherent horizontal, +/-10° coherent vertical
Maximum continuous SPL : 108dB (per pair @ 1m)
Crossover frequency : 2.1kHz
Recommended Amplifier Power: 75 to 300 Watts
Nominal Impedance : 8 Ohm
Connectors : 2 x Pairs Binding Posts/4mm Plugs – Bi-Wireable
Cabinet Dimensions (HxWxD) : 450 x 250 x 294mm
Weight : 18kg (per cabinet)


ATC SCM 20P SL Pro datasheet ATC SCM 20P SL Pro user manual
Datasheet Manual
