ATC SCM 150 SE ( 3-way active/passive monitor )

AudioStereo logo

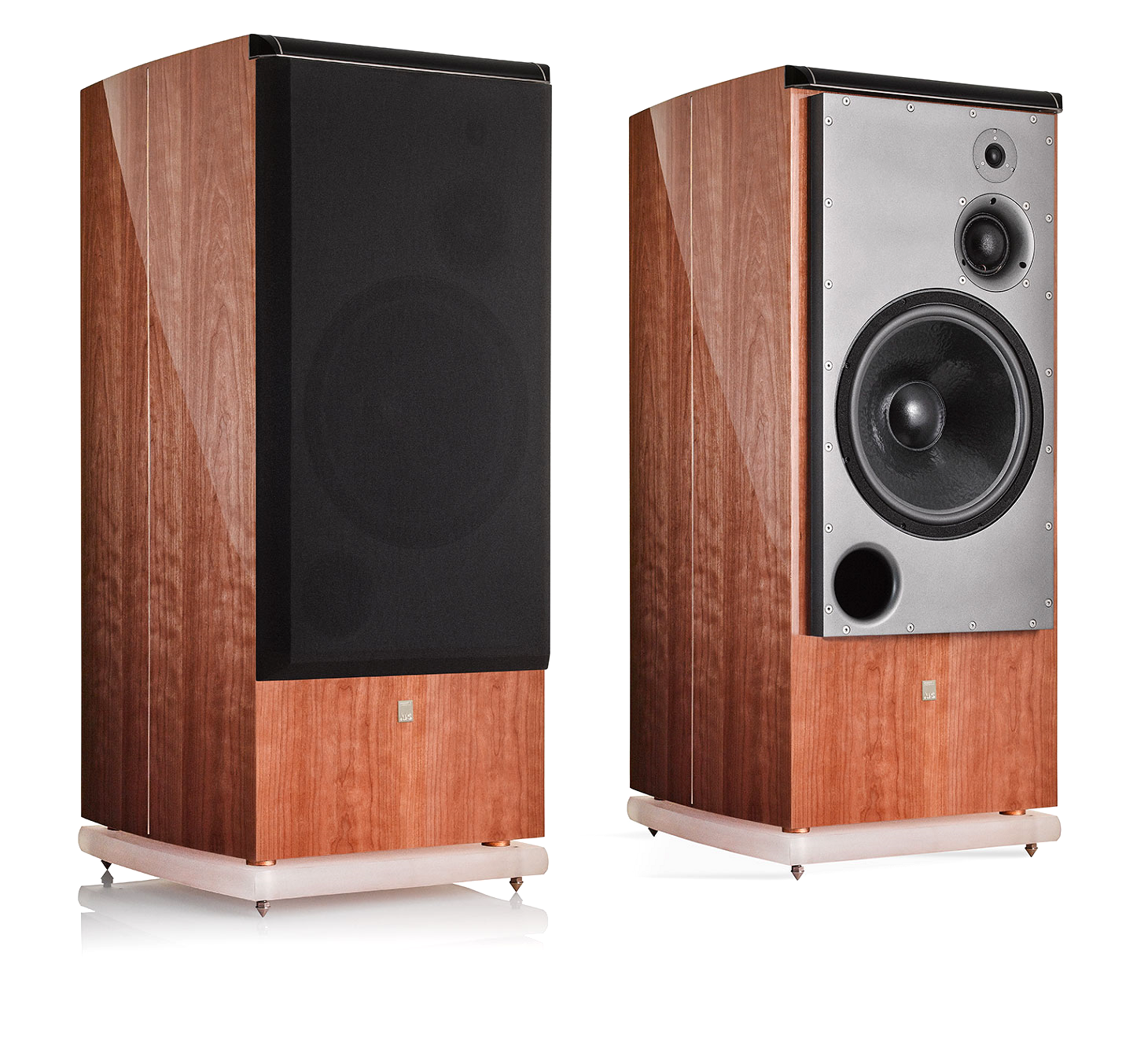

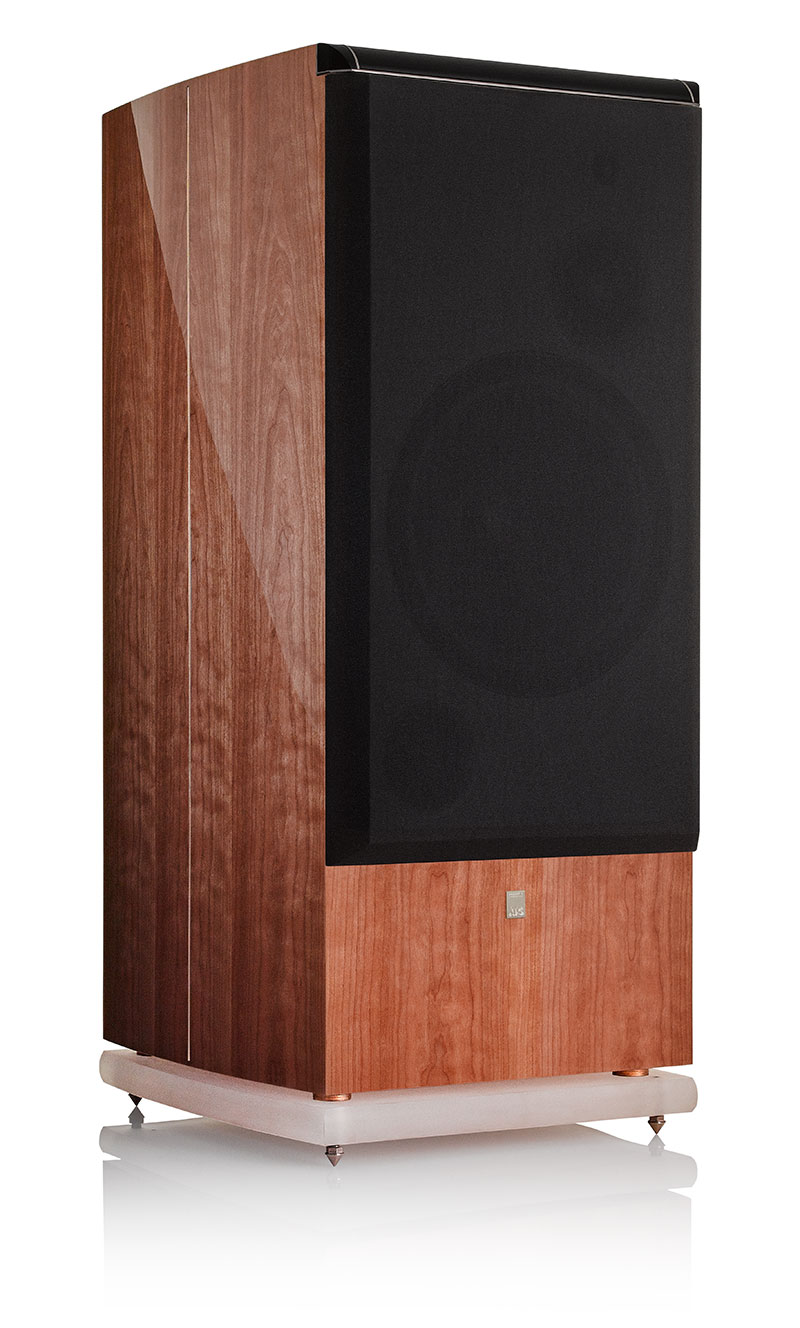

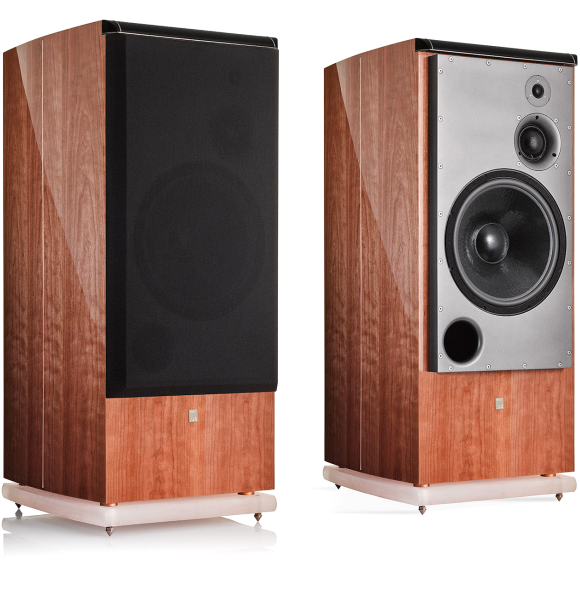

ATC SCM 150 SE - Special Edition Series
ATC SCM 150 LE pic1 ATC SCM 100 SE pic2 ATC SCM 150 LE pic3
£39550 / £44500
( passive / active )

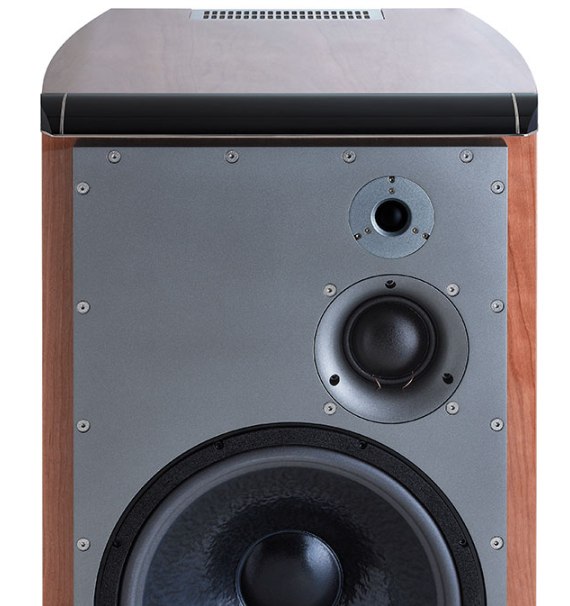

ATC SCM 150 LE Features:

ATC SCM 50 SL 25mm Dual Suspension ‘S-Spec’ Tweeter ATC SCM 50 SL 75mm Dual Suspension Super Dome Midrange
25mm Dual Suspension ‘S-Spec’ Tweeter 75mm Dual Suspension Super Dome Midrange
ATC SCM 150 SL 375mm SL Super Linear Bass
375mm SL Super Linear Bass

Specifications

Drivers:HF 25mm ATC Neodymium, Mid 75mm ATC Super Dome, LF 375mm ATC Super Linear
Frequency Response (-2dB): 60Hz-17kHz
Frequency Response (-6dB): 25Hz-25kHz
Matched Response: +/- 0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 117dB
Crossover Frequencies: 380Hz and 3.5kHz
Connectors: Male XLR
Filters: All active
Amplifier Output: 200w LF, 100w Mid, 50w HF
Suitable Preamps:  ATC SCA2, CDA2 Mk2, CA2 Mk2
Loudspeaker Dimensions (HxWxD): 1205 x 533 x 634 mm
Weight: 97kg

Passive version

Sensitivity: 91dB @ 1W @ 1m
Loudspeaker Dimensions (HxWxD): 1205 x 533 x 640 mm
Suitable Amps: 100 to 1500 Watts (see ATC P2)
Weight: 93kg
