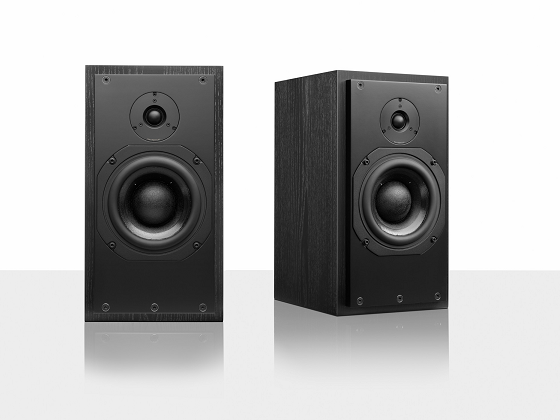

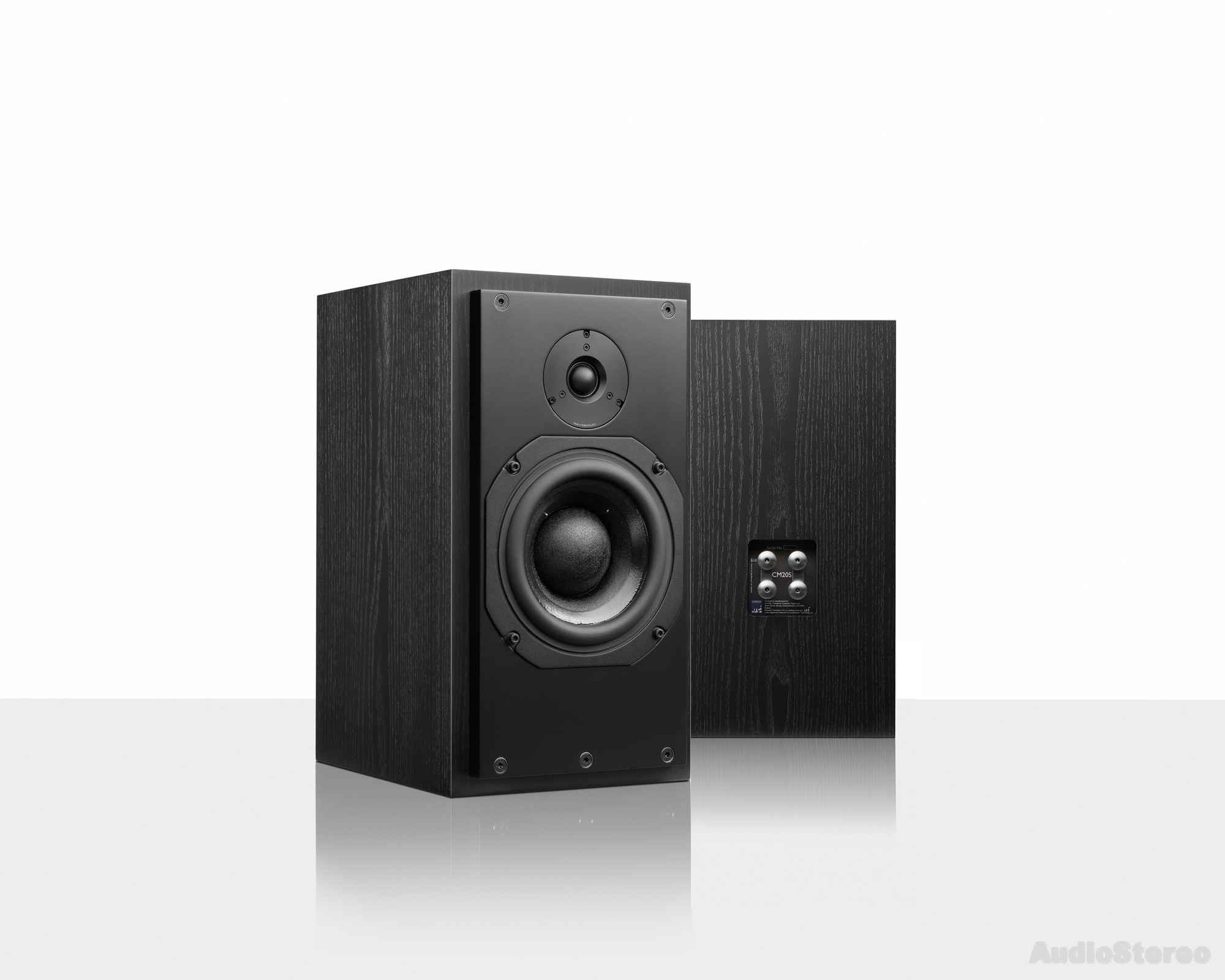

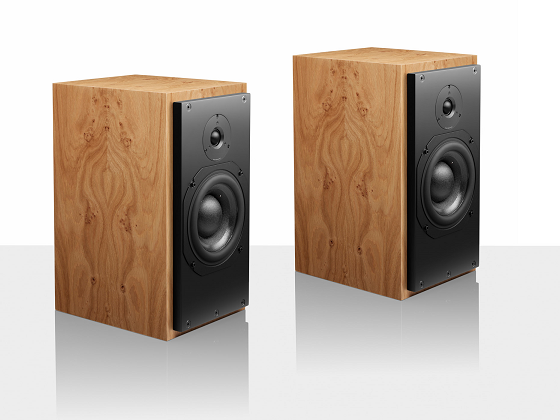

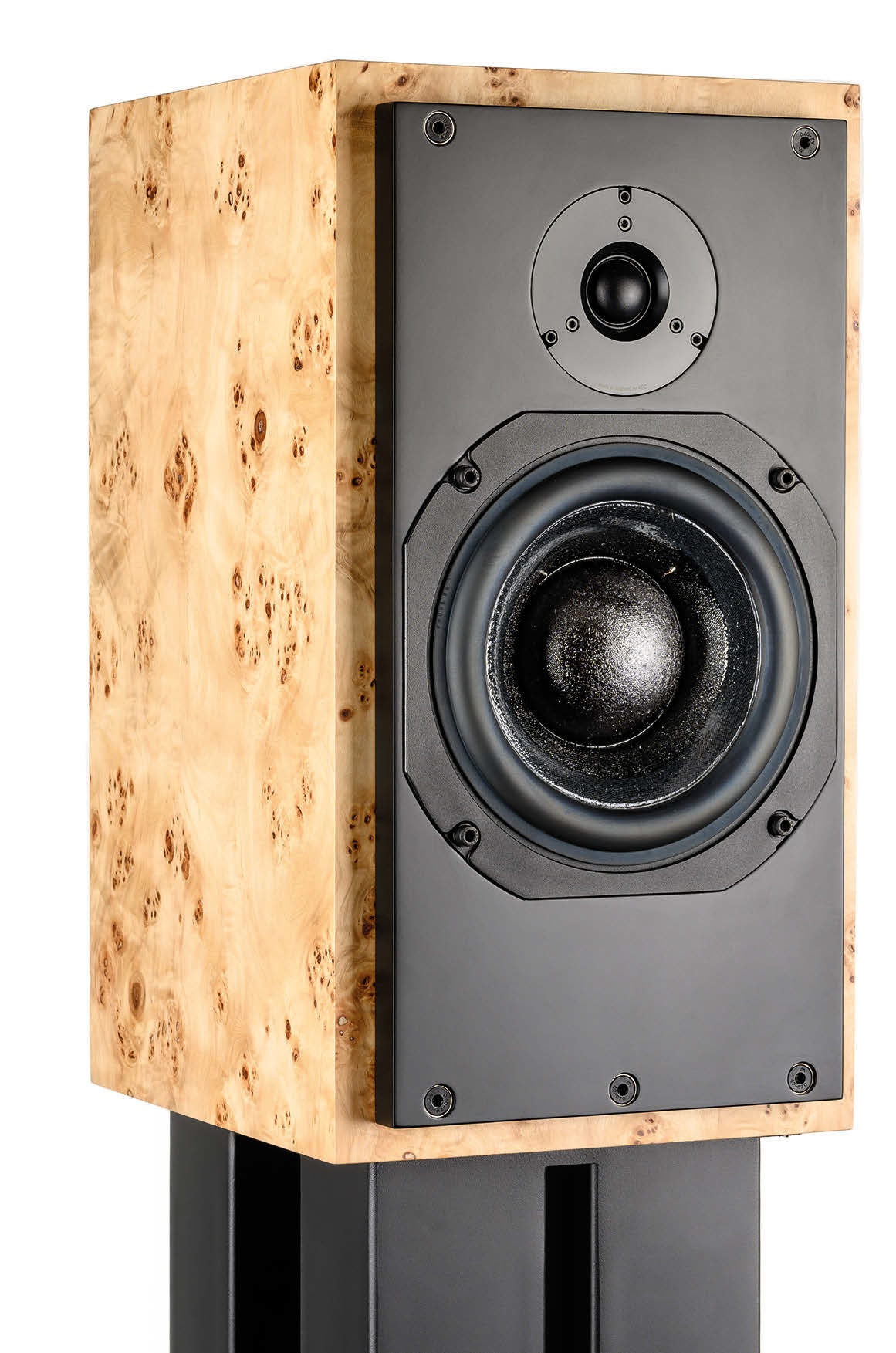

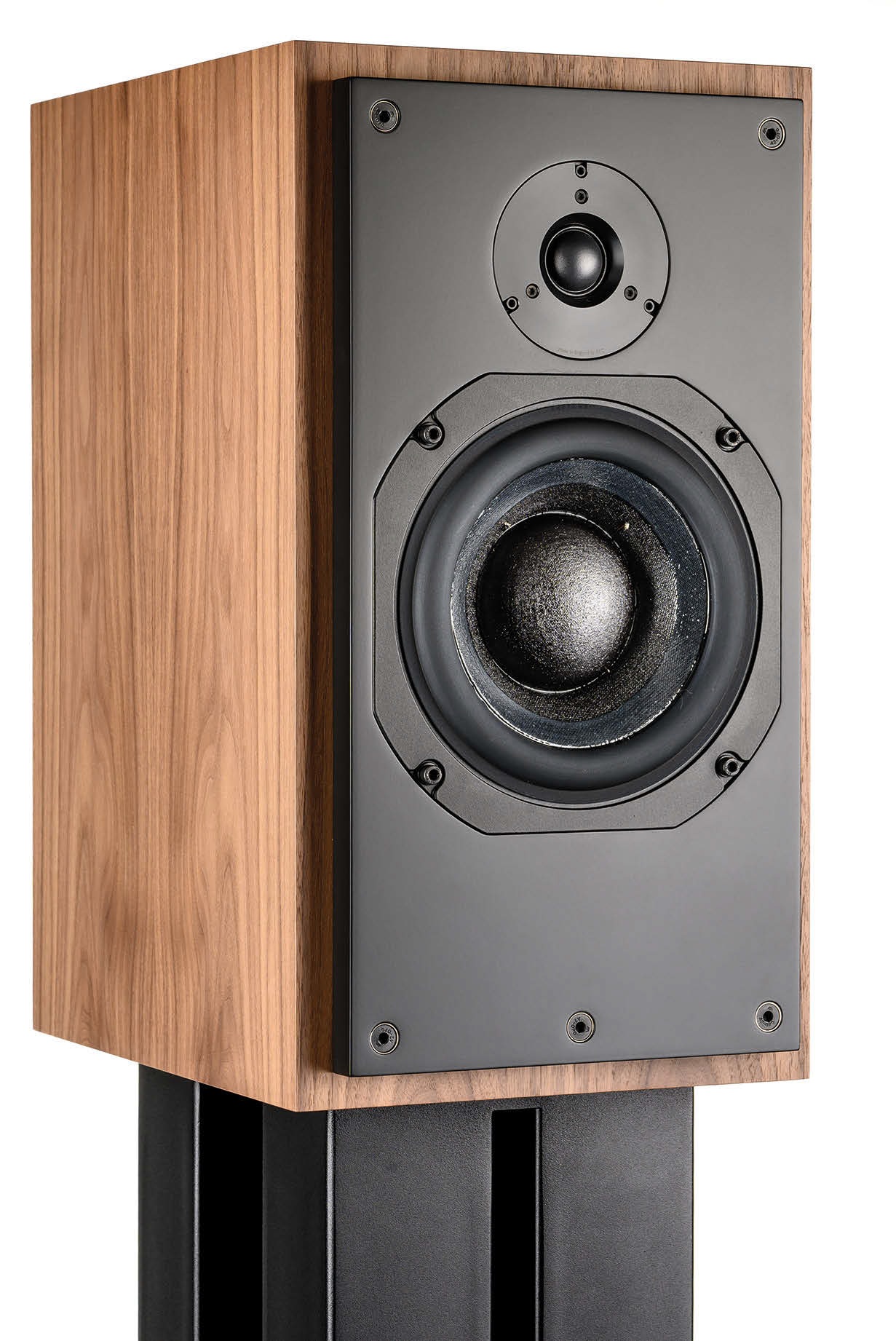

ATC SCM 20 SL - Classic Series

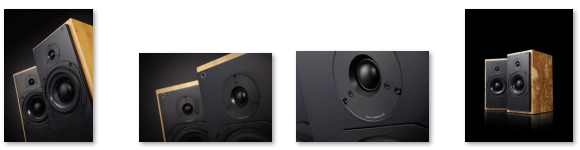

ATC SCM 20 SL pics
£3770
call
  << variante >>
ATC SCM 19 ELAC 330 CE XAVIAN XN 270
330 CE XN 270 Evo

ATC SCM 20 SL Features:

  • ATC 195mm Super Linear midbass driver
  • ATC 25mm Dual Suspension ‘S-Spec’ tweeter

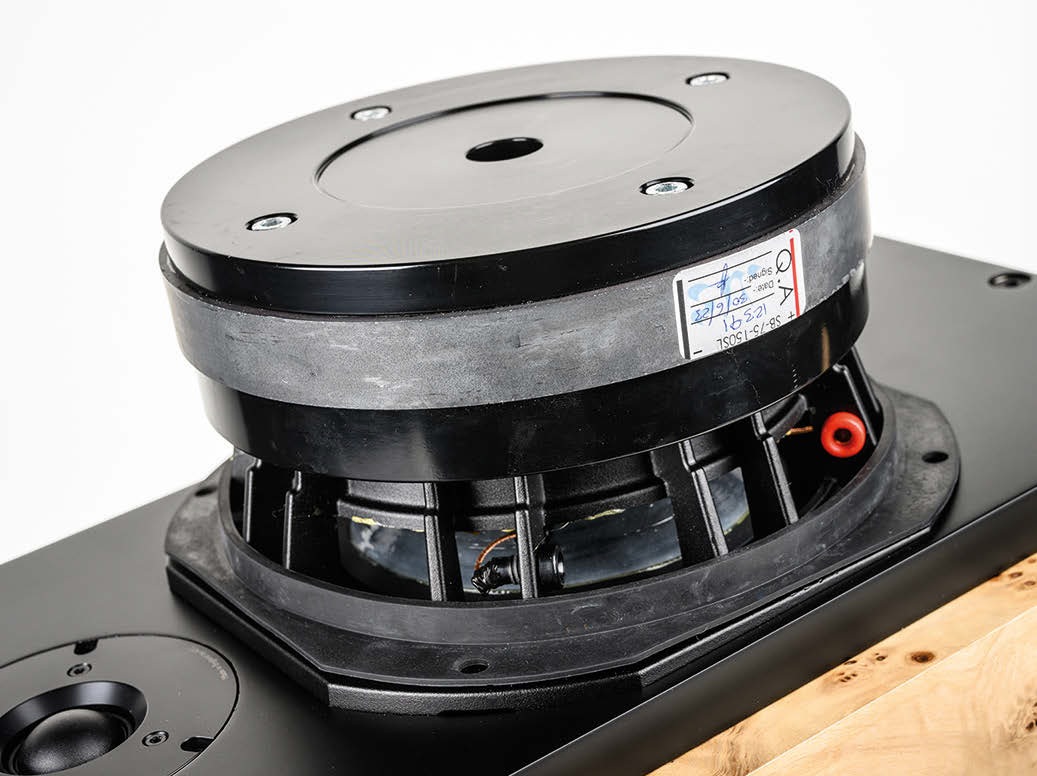

  • 9kg optimised short-coil/ long gap motor assembly
  • In-house, hand-wound precision flat wire coil

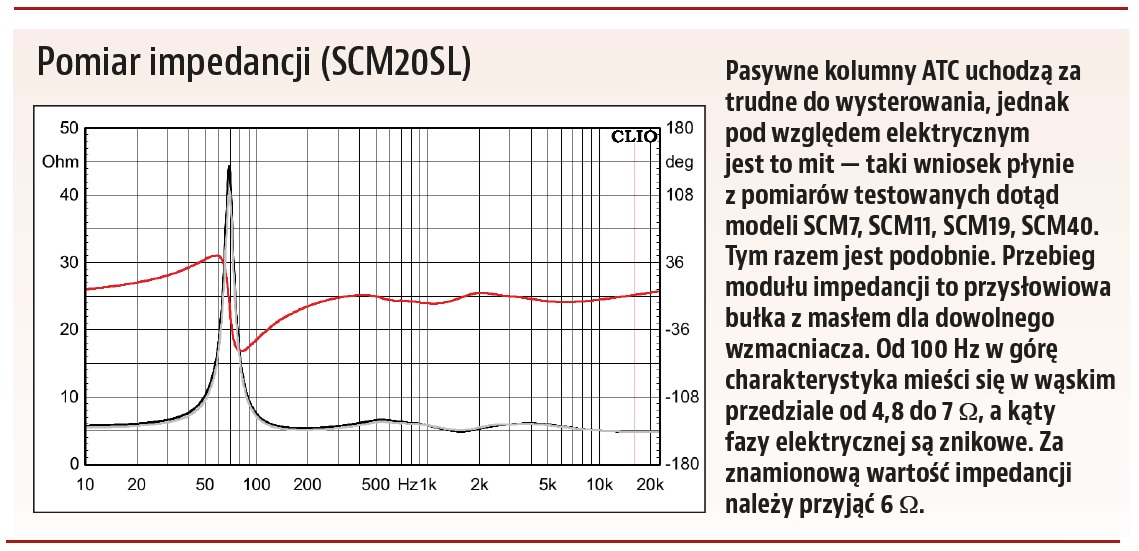

  • Flat impedance curve allowing easy load for amplifiers
  • The hybrid design incorporates a 195mm bass cone on to which is grafted a 75mm soft dome.
  • The magnet assembly utilises ATC’s unique “SL” technology which greatly reduces distortion in moving coil drive units by a very significant 12-15dB (3rd harmonic). To minimise Time Domain Distortion both dome and cone are made from acoustically “dead” polyester wave material doped with ATC’s own formulation
  • Not only does the SCM20SL reproduce bass with remarkable articulation and authority, it also has outstanding mid-band clarity, incredible dynamic range, and awesome power handling

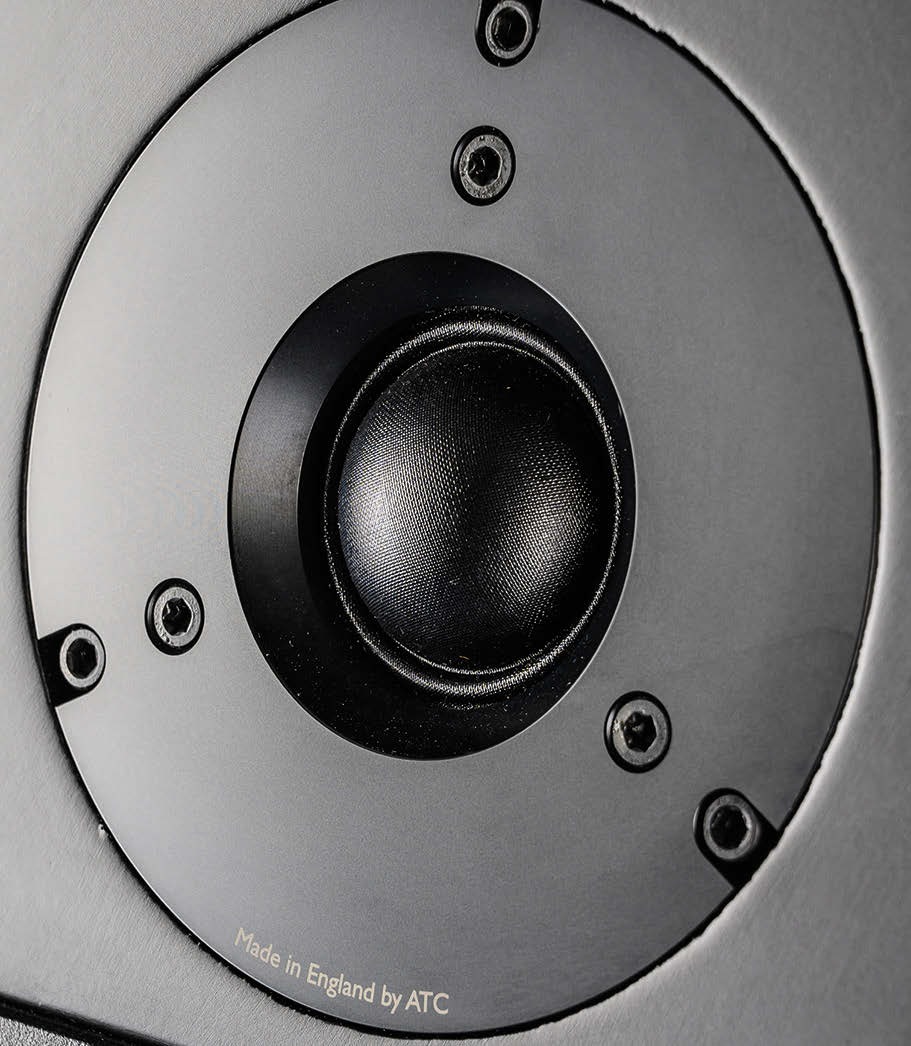

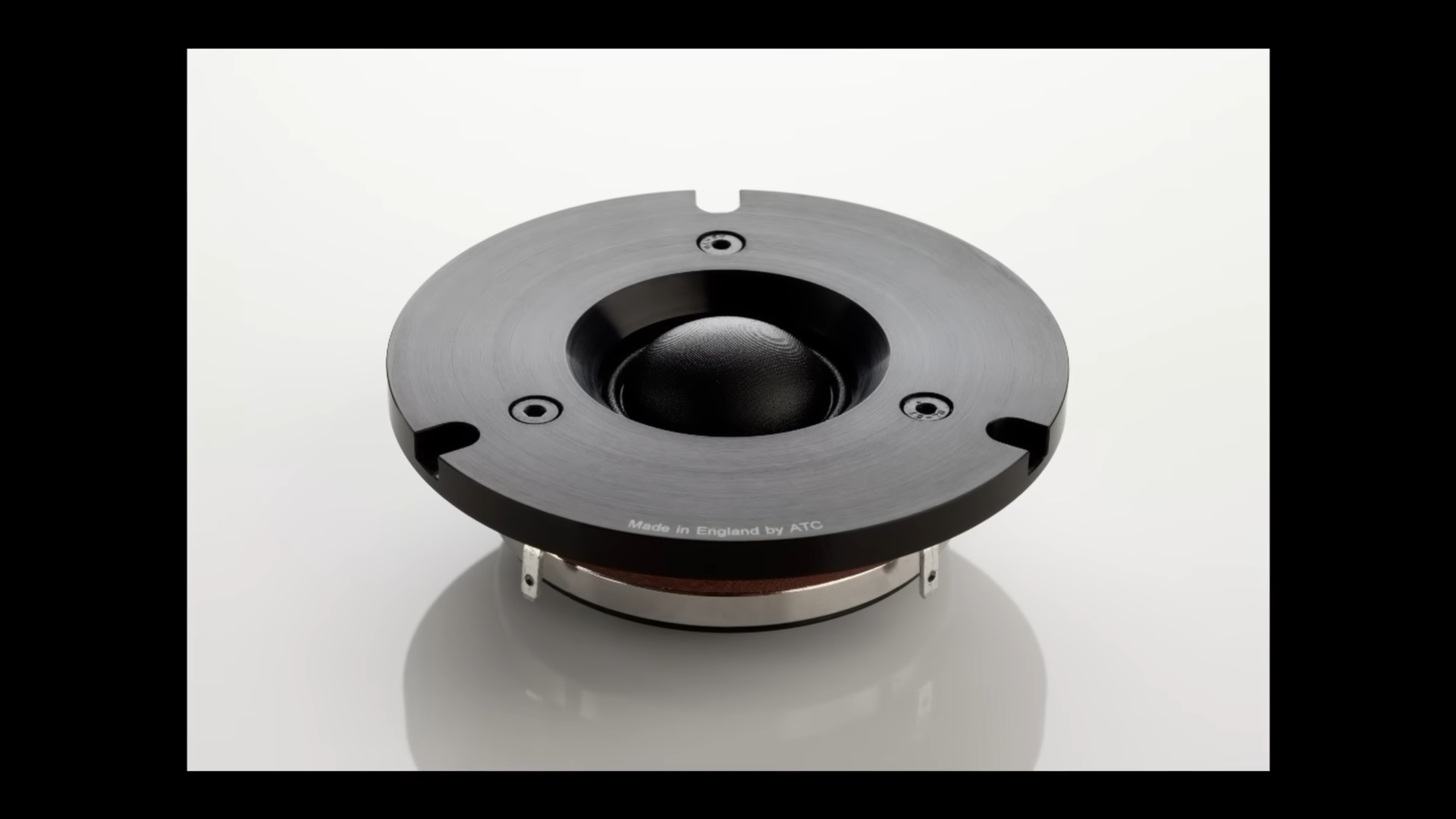

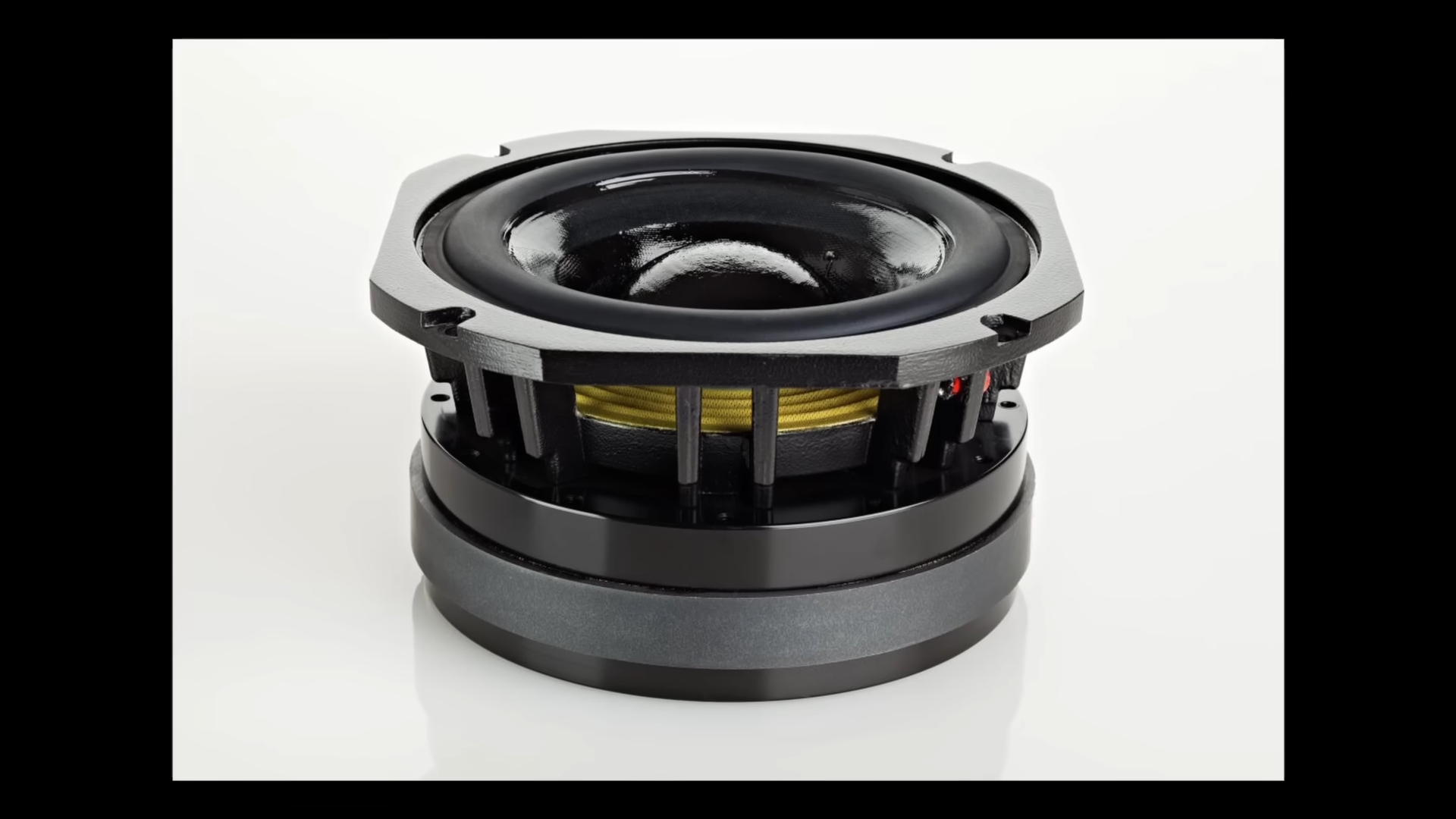

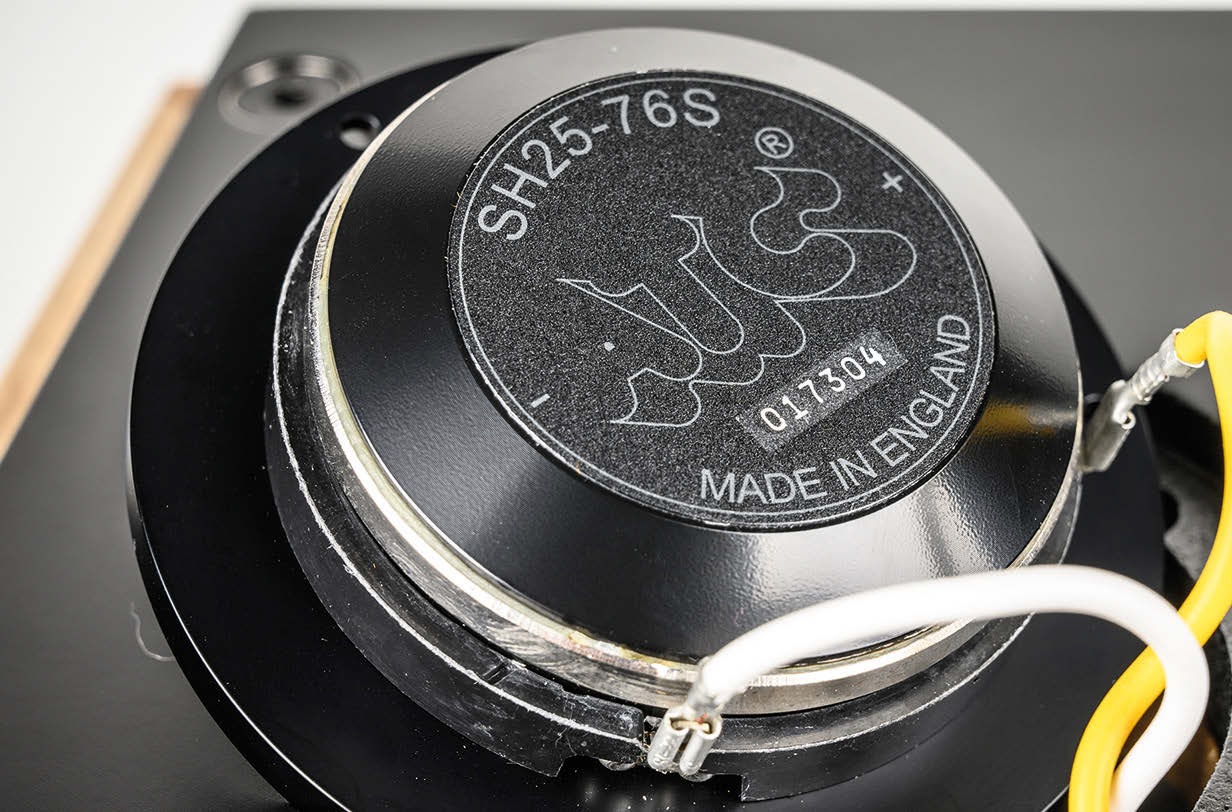

ATC SCM 20 SL Super Dome tweeter ATC SCM 20 SL Super Linear midbass

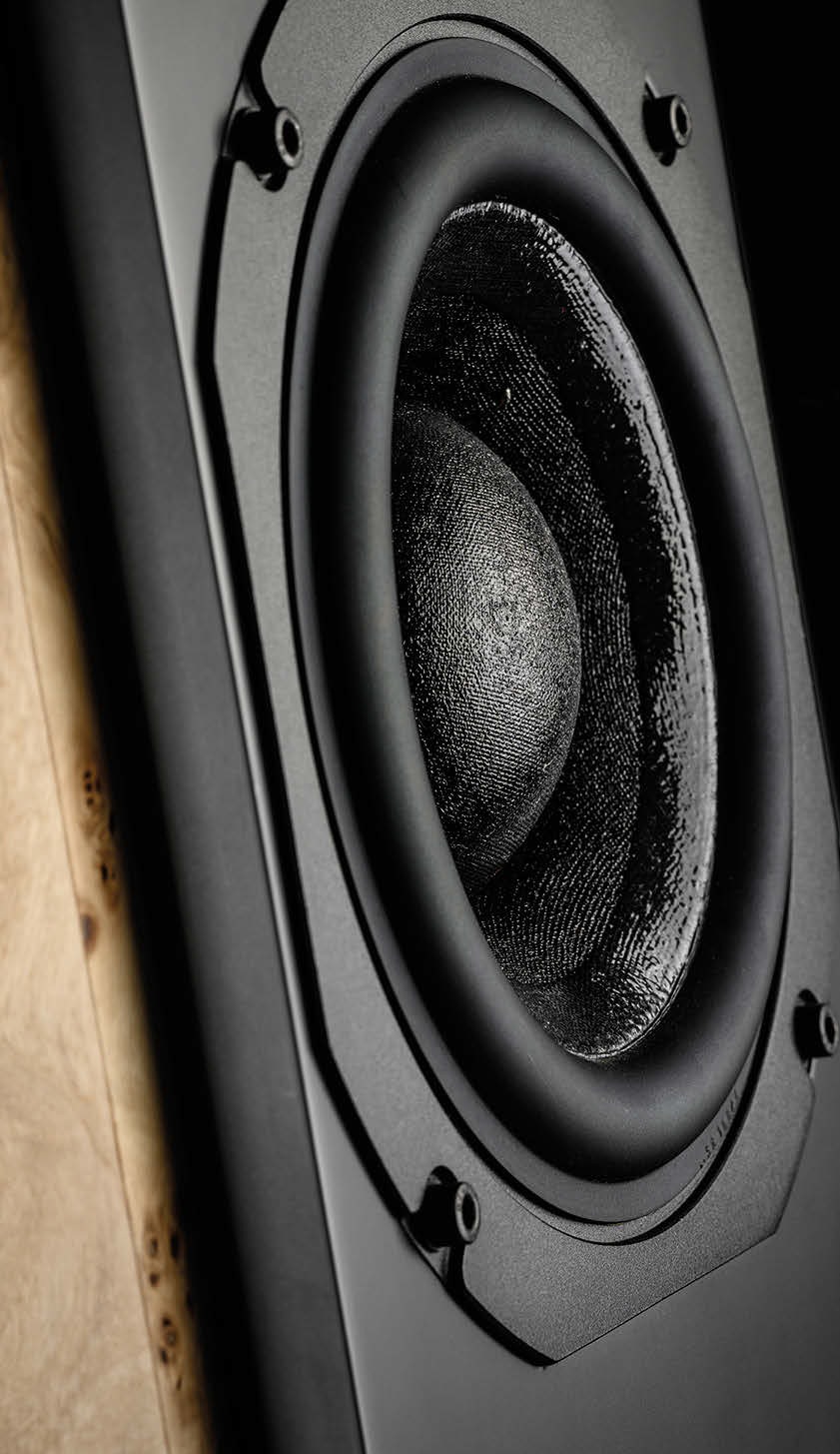

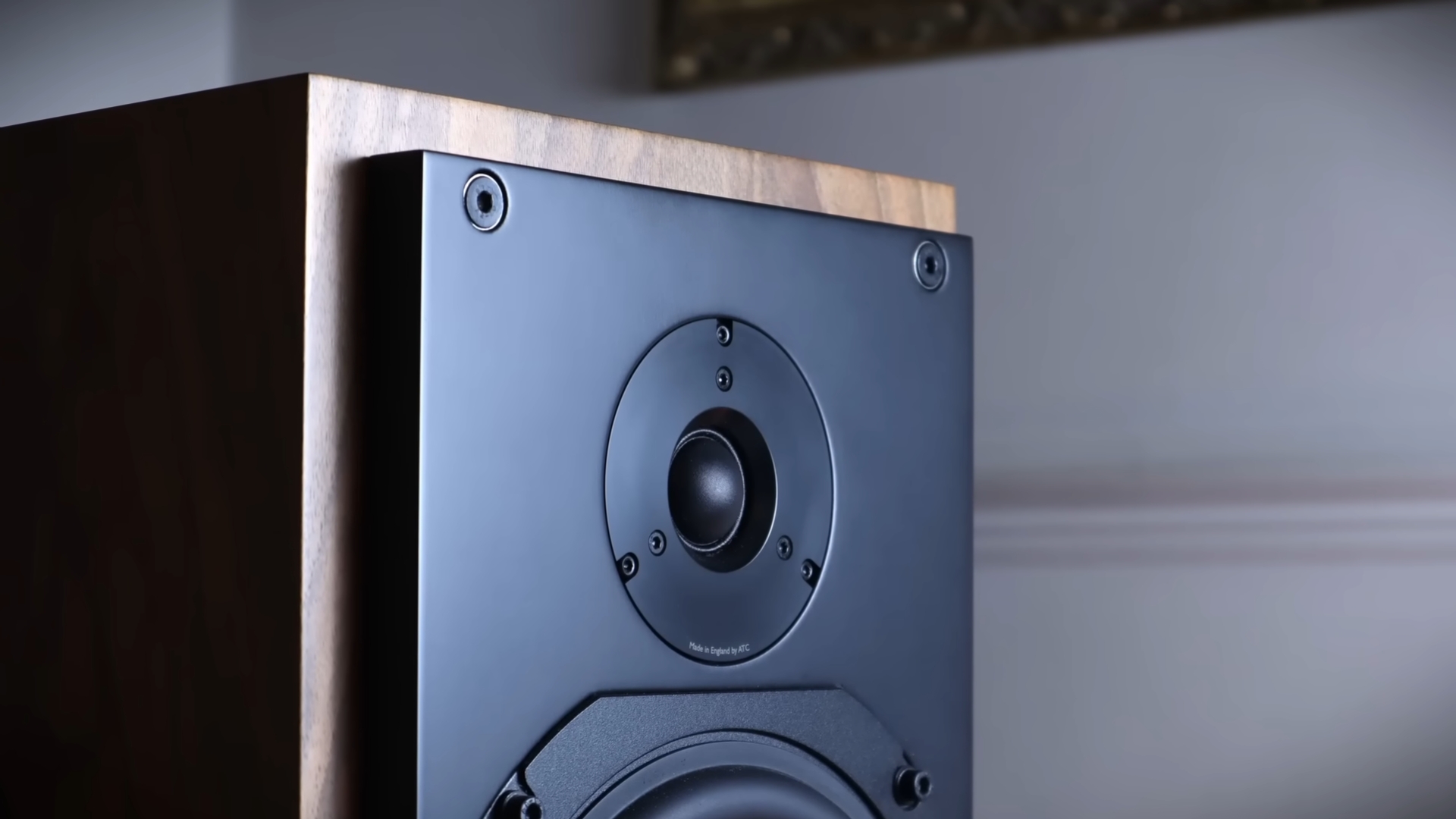

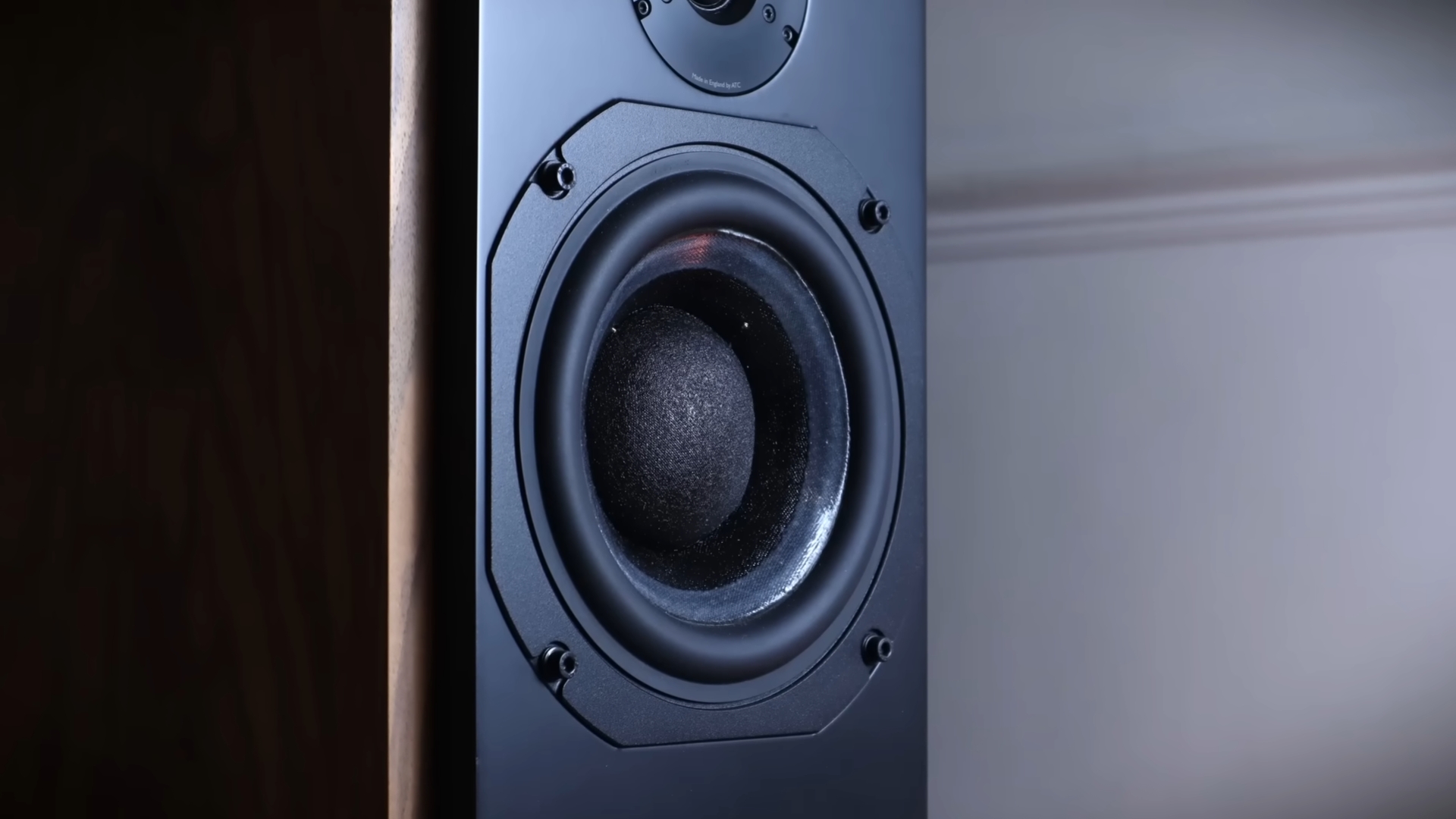

25mm Dual Suspension ‘S-Spec’ Tweeter 195mm 'SL' Super Linear Mid/Bass

Specifications

Drivers: LF 195mm Super Linear, HF 25mm Dual-Suspension ‘S-Spec’ tweeter
Frequency Response -6dB: 60Hz – 20kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 85dB @ 1W @ 1m
Max SPL: 108dB
Crossover Frequency: 2.8kHz

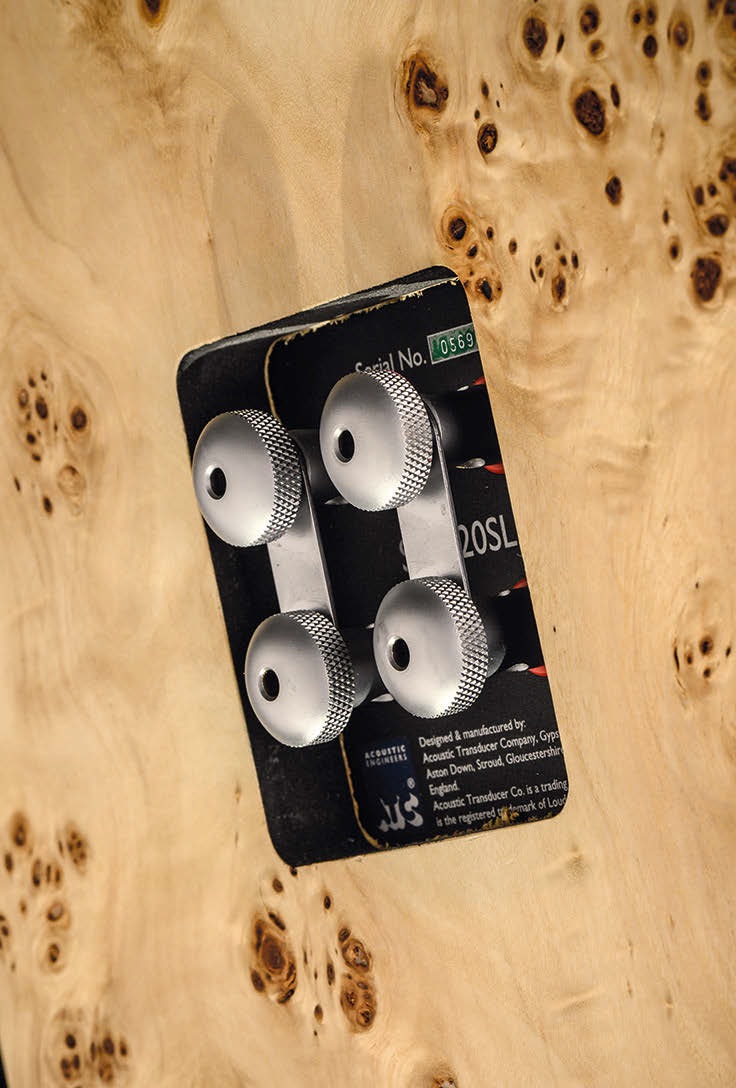

Connectors: Binding Posts/ 4mm banana plugs, bi-wire
Recommended Amplifier Power75-300 Watts
Nominal Impedance: 8 ohms
Cabinet Dimensions (HxWxD): 440 x 239 x 333 mm
Weight: 22.7kg

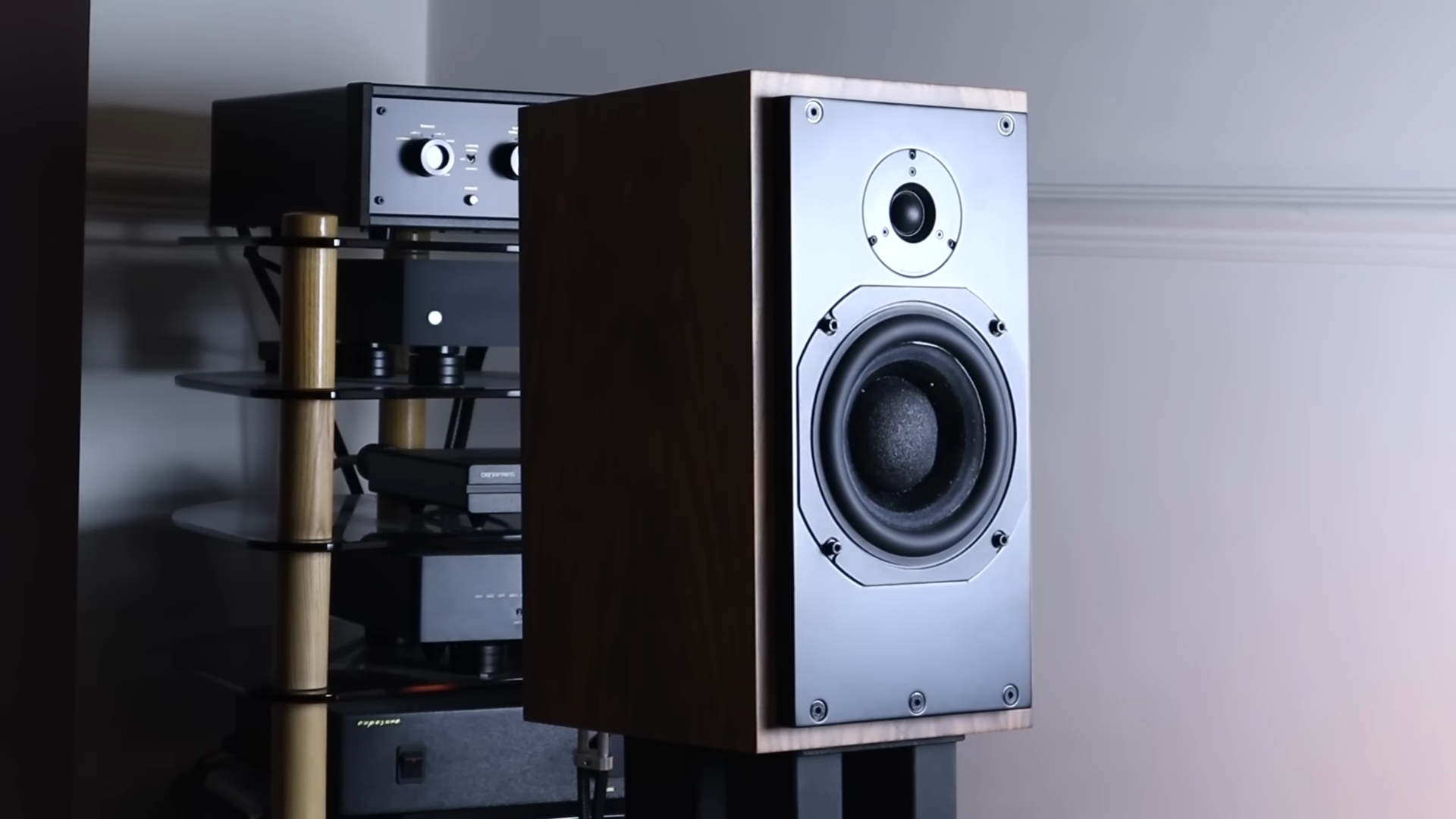

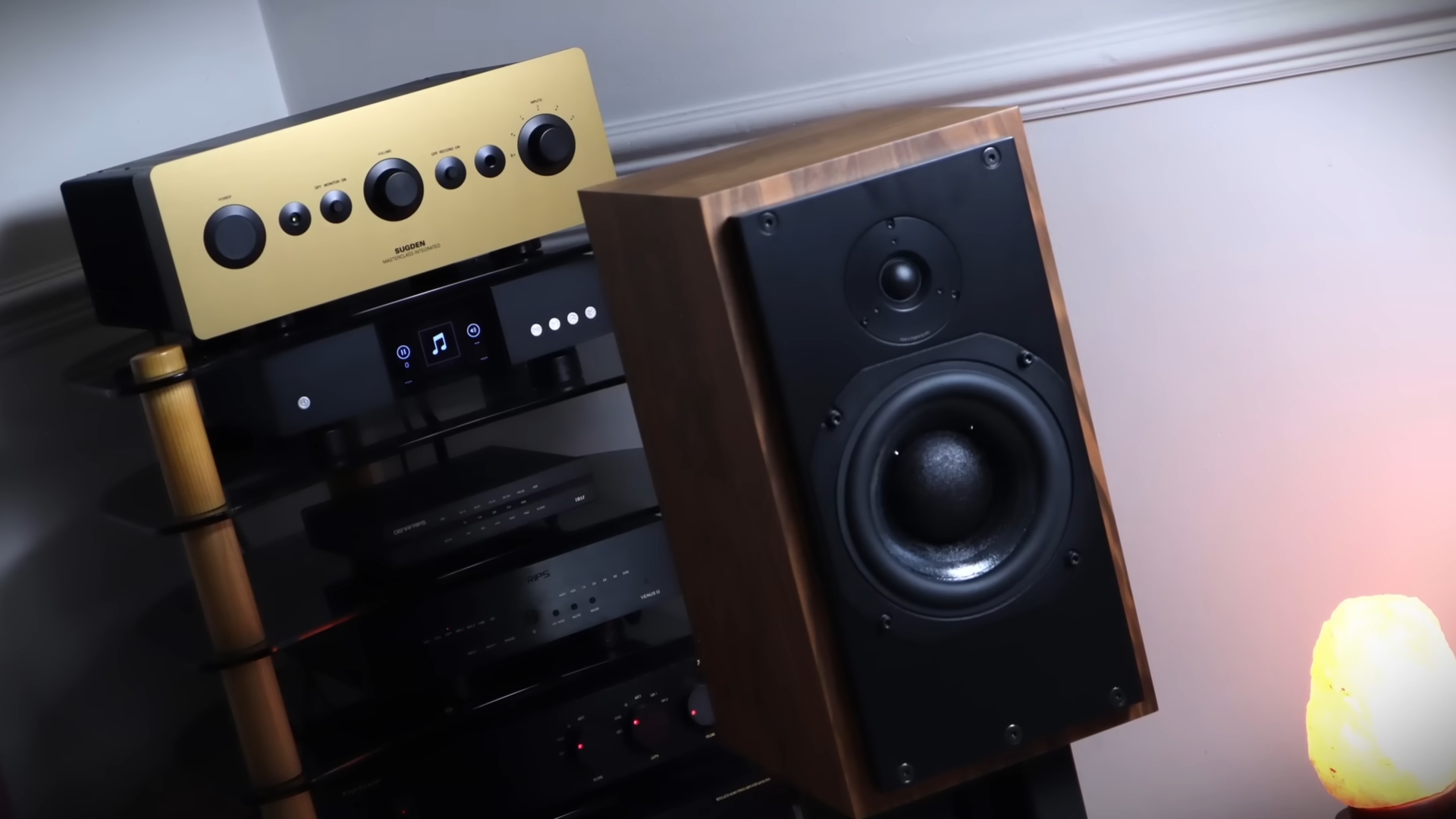

ATC SCM 20 SL Stereo Setup ATC SCM 20 SL Stereo Setup
ATC SIA2-150 Integrated Amplifier Cyrus Stereo 200 Cyrus Lyric DAYENS Ecstasy III Integrated Amplifier
SIA2-150 Stereo 200 Lyric
