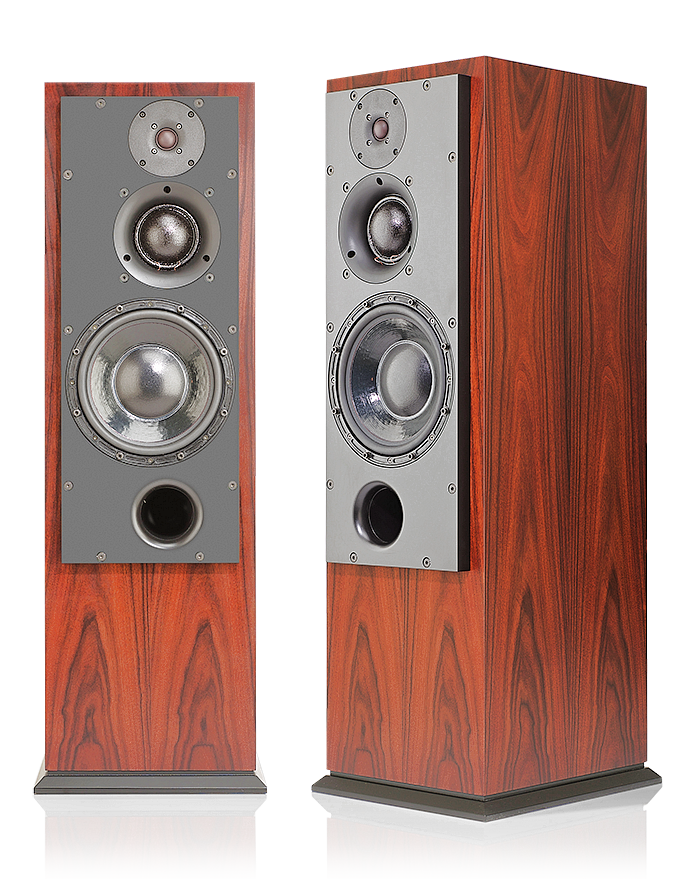

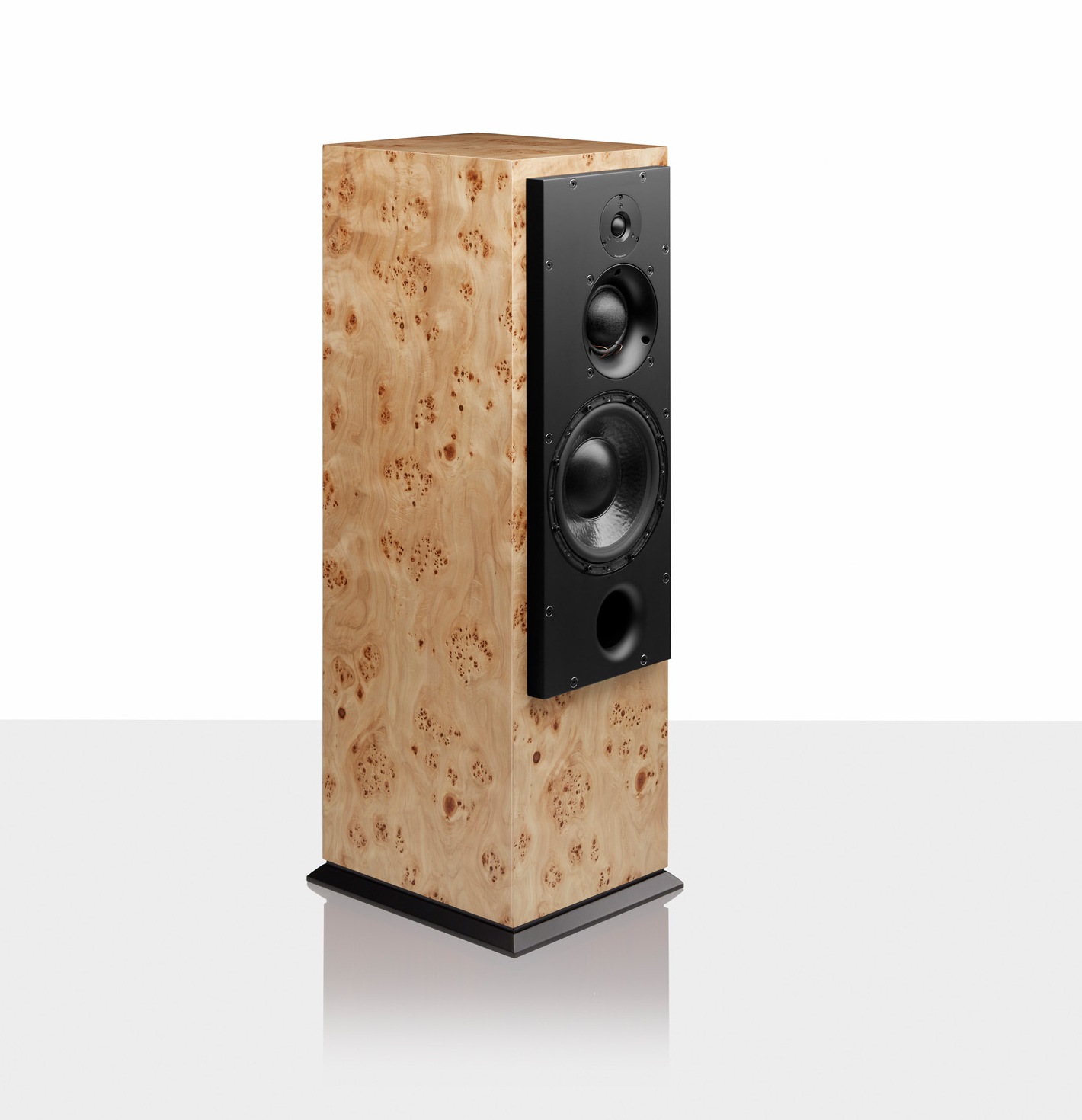

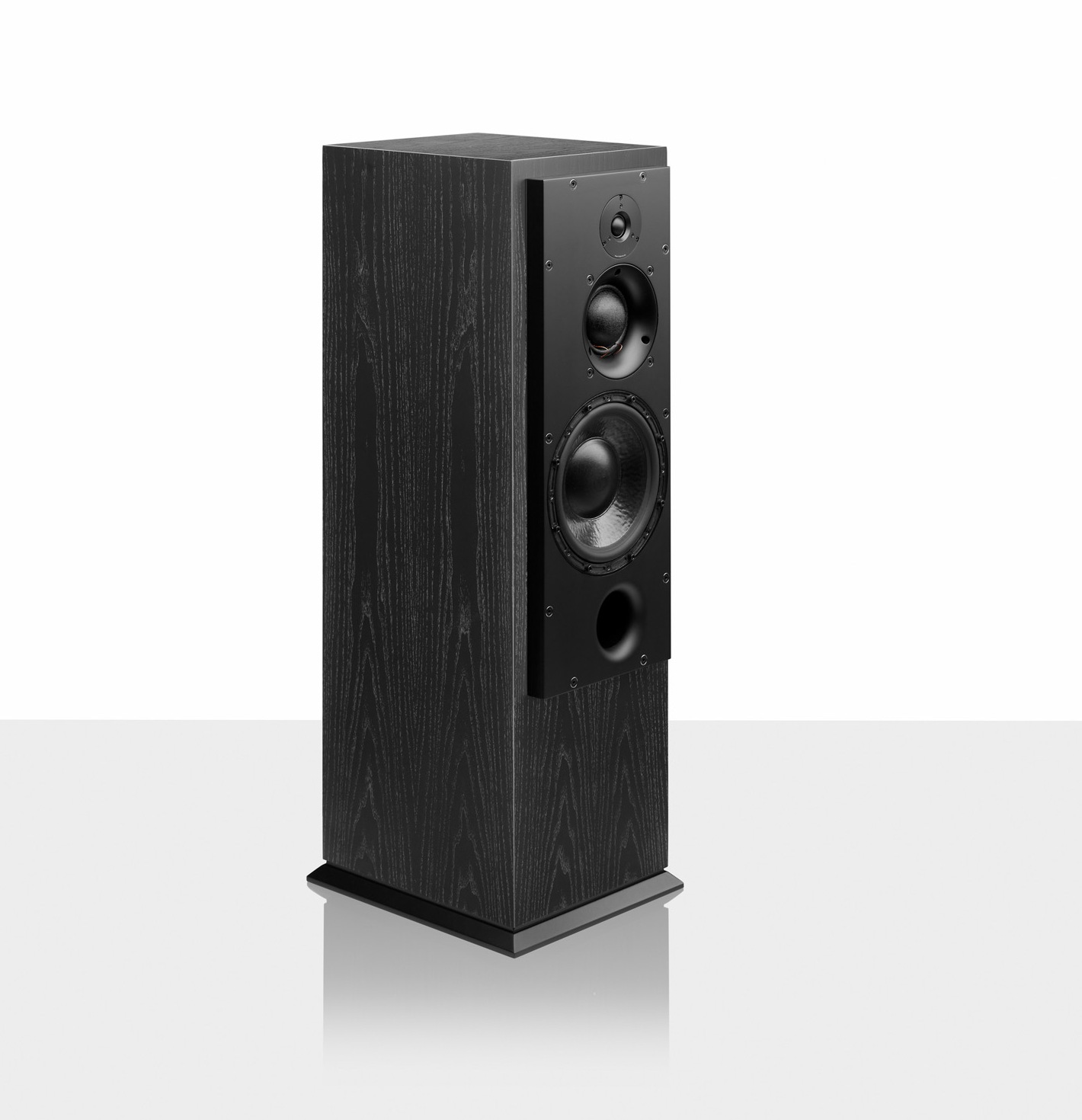

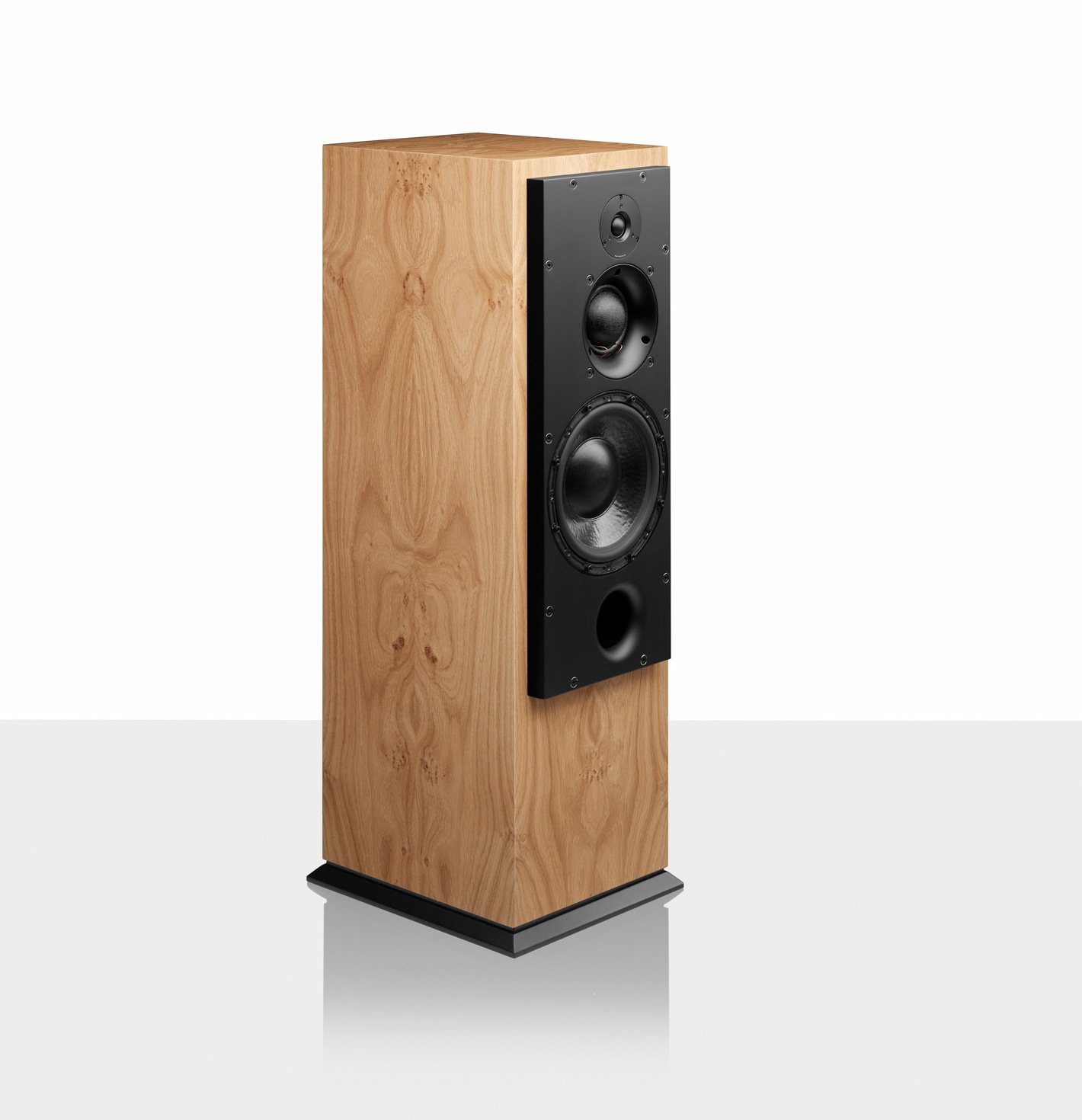

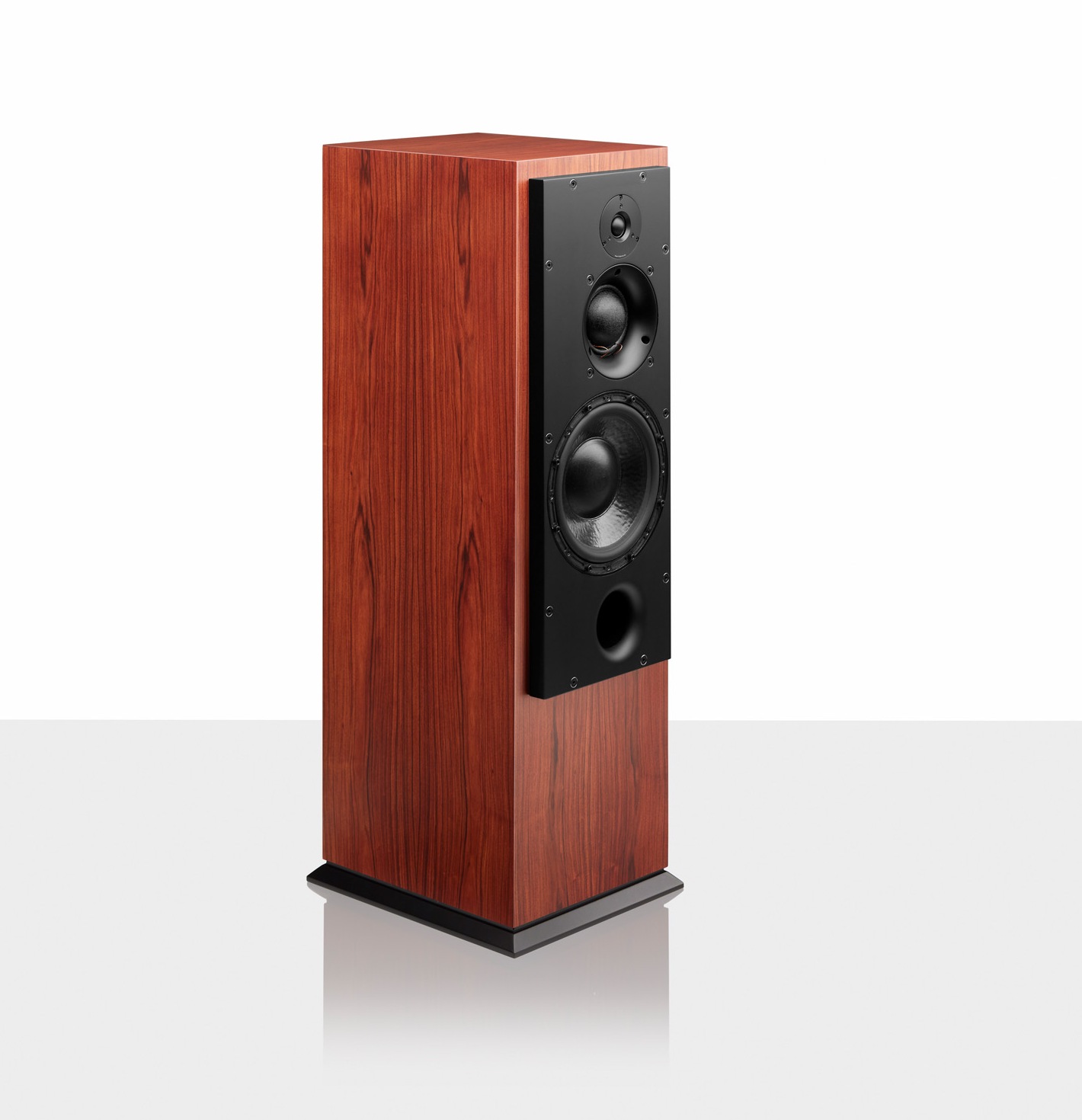

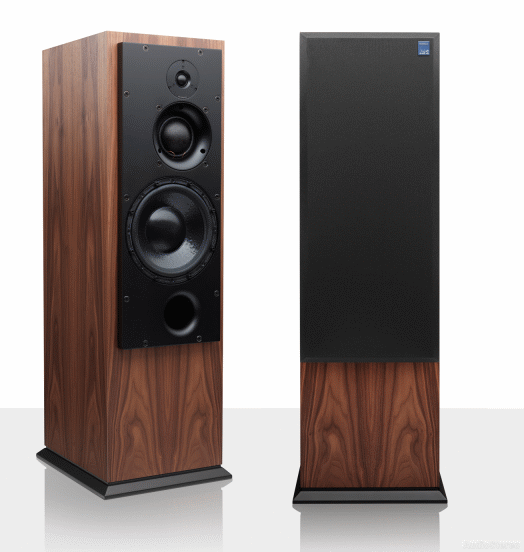

ATC SCM 50 SLT - Tower Series

call

ATC SCM 50 SLT Features:

ATC SCM 50 SLT 25mm Dual Suspension ‘S-Spec’ Tweeter ATC SCM 50 SLT 75mm Dual Suspension Super Dome Midrange
25mm Dual Suspension ‘S-Spec’ Tweeter 75mm Dual Suspension Super Dome Midrange
ATC SCM 50 SLT 250mm SL Super Linear Bass
250mm SL Super Linear Bass

Specifications

Drivers: HF 25mm ATC Neodymium, Mid 75mm ATC Super Dome, LF 250mm ATC Super Linear
Amplitude Linearity ±2dB: 70Hz – 17kHz
Frequency Response -6dB: 38Hz – 22kHz (freestanding, no room gain)
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity (sine wave): 87dB @ 1W @ 1m
Max SPL: 112dB
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Binding Posts/ 4mm banana plugs, tri-wire capable
Recommended Amplifier Power100 to 1500 Watts
Nominal Impedance: 8 ohms
Cabinet Dimensions (HxWxD): 1003 x 304 x 470 mm
Weight: 53.3kg




ATC SCM 50 SLT Stereo Setup ATC SCM 50 SLT Stereo Setup
ATC SIA2-150 Integrated Amplifier DAYENS Ecstasy IV Power Amplifier
SIA2-150
Cyrus Lyric Cyrus Mono X 300 Signature
Lyric Mono X 300 Sig
