  • Sophisticated aluminum woofers: Through the use of aluminum, resonances that affect the linearity of common paper cones can be placed beyond the driver’s operating frequency range.
  • VX-Technology: The acclaimed drive unit, which combines the renowned JET tweeter with a ring-radiator midrange driver in a concentric arrangement, provides the foundation of these speakers remarkable sound. What sets it apart is the variable X-JET suspension, hence the designation VX-JET. The thinking behind this drive unit draws from the fact that every room presents different acoustic characteristics and that the same loudspeaker will produce different results from one room to another. A mechanism on the rear of the loudspeaker allows for stepless adjustment of the entire drive unit by up to 8 mm in front of and 8 mm behind the front baffle
  • VX-JET 5 Tweeter: Delivering true high definition sound, ELAC’s JET 5 tweeter enthralls with its lightning-fast response and wide dynamic range

Concentro M

One look tells you this is no ordinary loudspeaker. The sophisticated cabinet features curves that allow optimum propagation and dispersion of sound waves.

Is it just a bit smaller? Yes, but that’s not all! The Concentro M exhibits characteristic design cues, but creates its own unique visual impact. Concentro proves that the whole can be even greater than the sum of its many state-of-the-art parts. A variable VX chassis lets you tailor the sound to your listening area, while four 220 mm woofers, installed in a pulse-compensated configuration, ensure exceptional bass delivery in any room.

Specifications
Dimensions H × W × D
1450 × 460 × 535 mm
with spikes and base plinth
Weight
ca 90 kg
Principle
3 ways, bass reflex
Woofers
4 × 220 mm Ø AS cone
Midrange
1 × 70 mm / 140 mm Ø AS-XR
honeycomb ring radiator
Tweeter
1 × JET V Core modified
Recom. Amplifier Power at Nominal Impedance
80-600 W / channel
Crossover Frequency
180 / 2,700 Hz
Sensitivity
88 dB / 2.83 V / 1 m
Nominal Impedance
4 Ohm
Frequency Range acc. to IEC 268-5
24 ··· 50,000 Hz
Nominal / Peak Power Handling
400 / 600 W
Finishes
black high gloss, white high gloss
ELAC Concentro M - Brochure

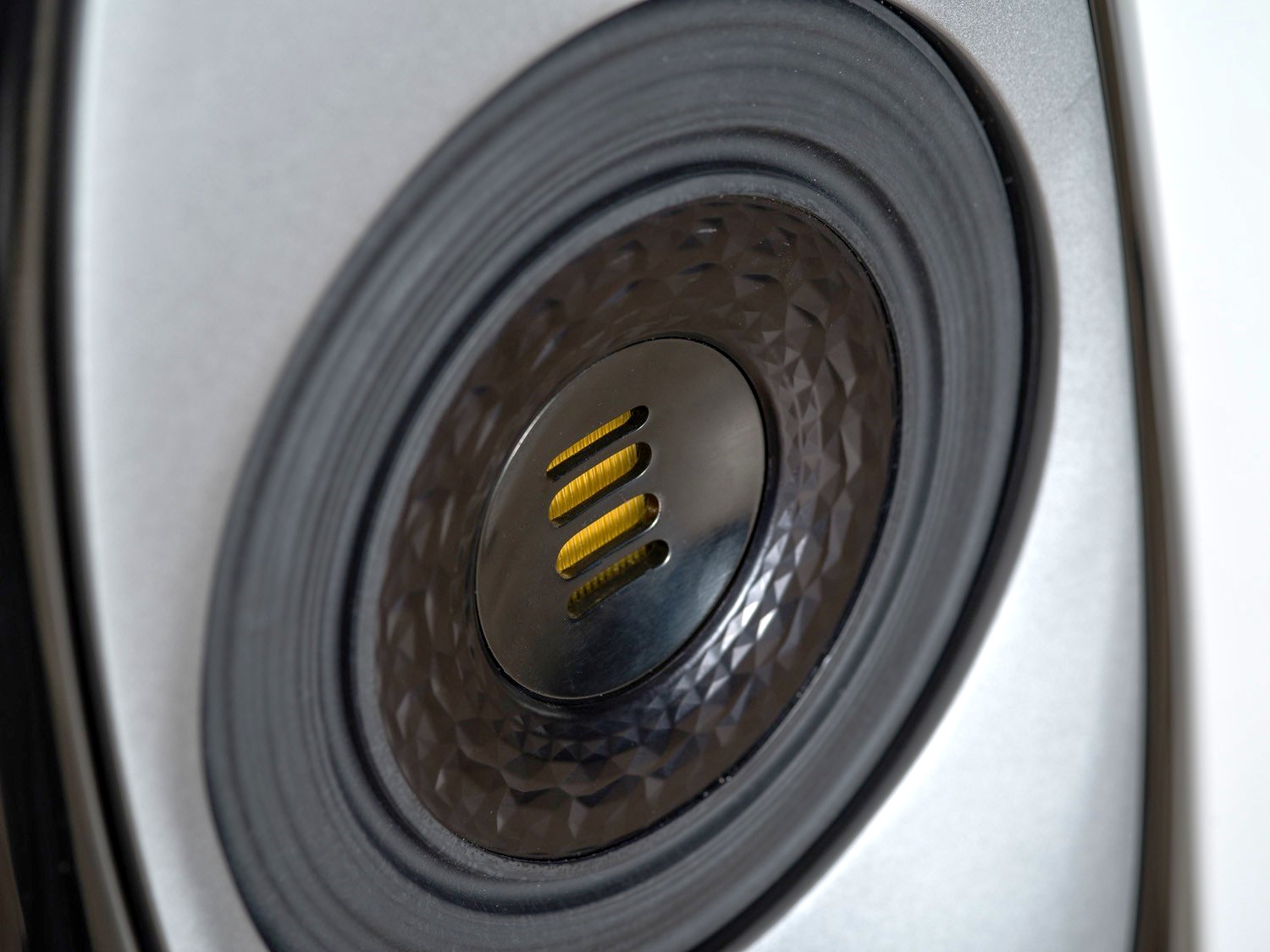

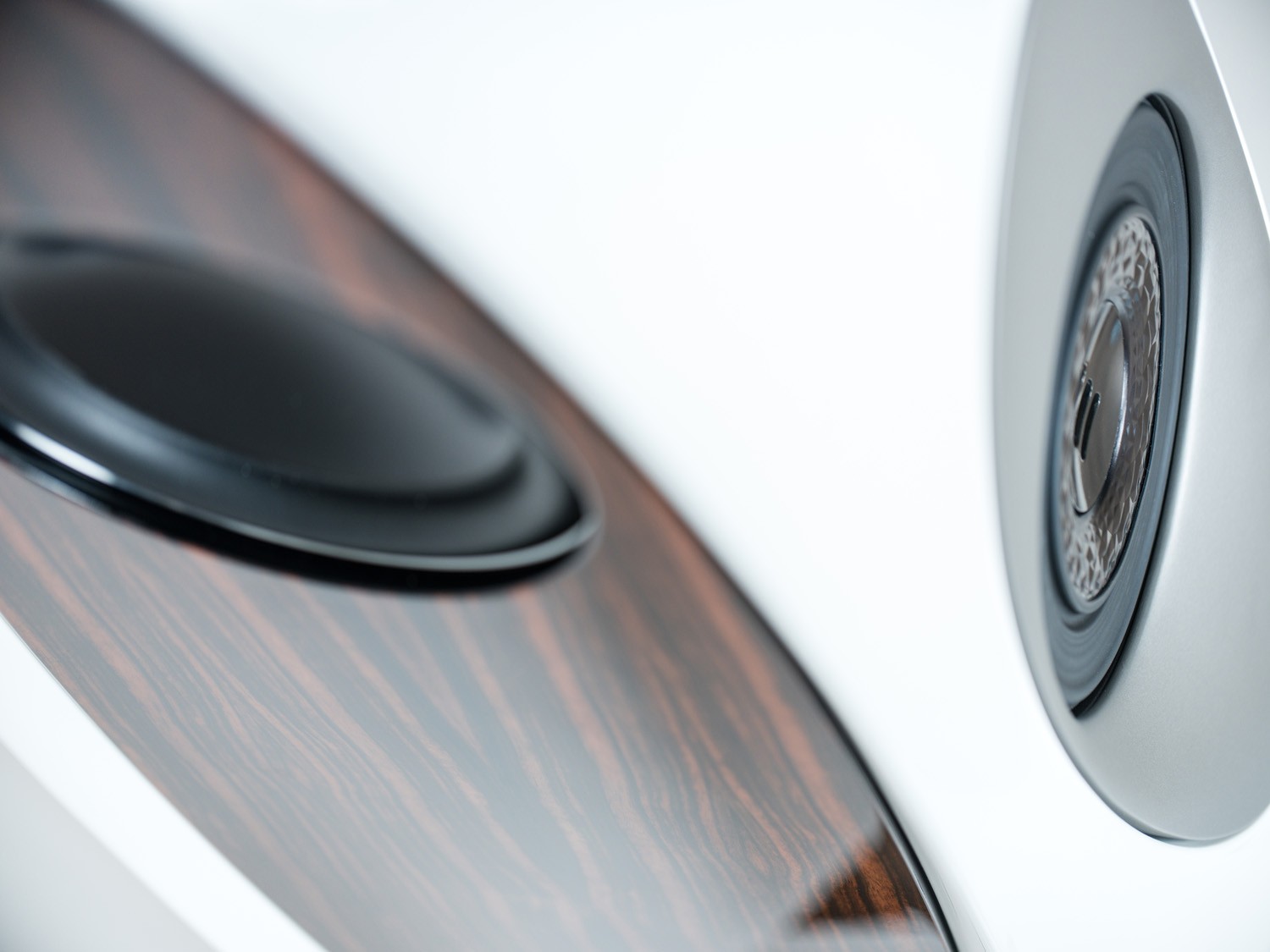

VX-JET coaxial Midrange-Treble Driver System

Combines the renowned JET tweeter with a ring-radiator midrange driver in a concentric arrangement, provides the foundation of these speakers’ remarkable sound

  ELAC Concentro M - VX-JET ring radiator tweeter-midrange unit

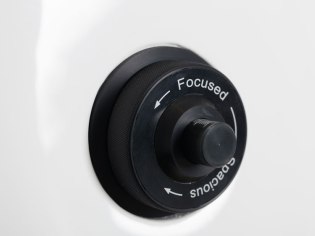

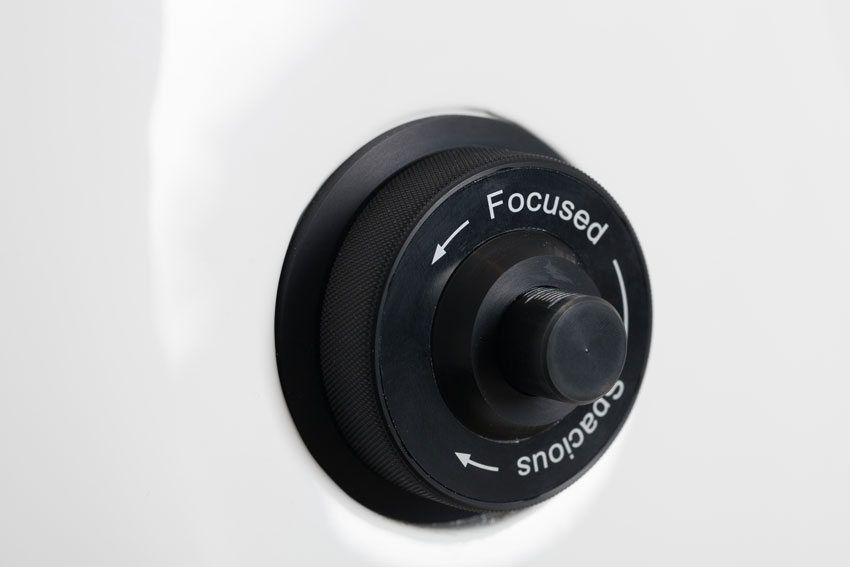

VX-JET adjustment

By means of an continuously adjusting knob at the rear side of the speaker the whole VX-JET driver may be moved 8 mm out (in front of the baffle) or 8 mm in (behind the baffle). By varying the position of the VX-JET, the directivity pattern of the mid-/highfrequency range can be adjusted. The result is not a variation of the sound of the speaker but a variation of the ratio between direct and reflected sound at the listening position. For the first time the VX-JET allows a constant spaciousness over a number of different rooms and listening distances.

  ELAC Concentro M - VX-JET ring radiator tweeter-midrange adjustment

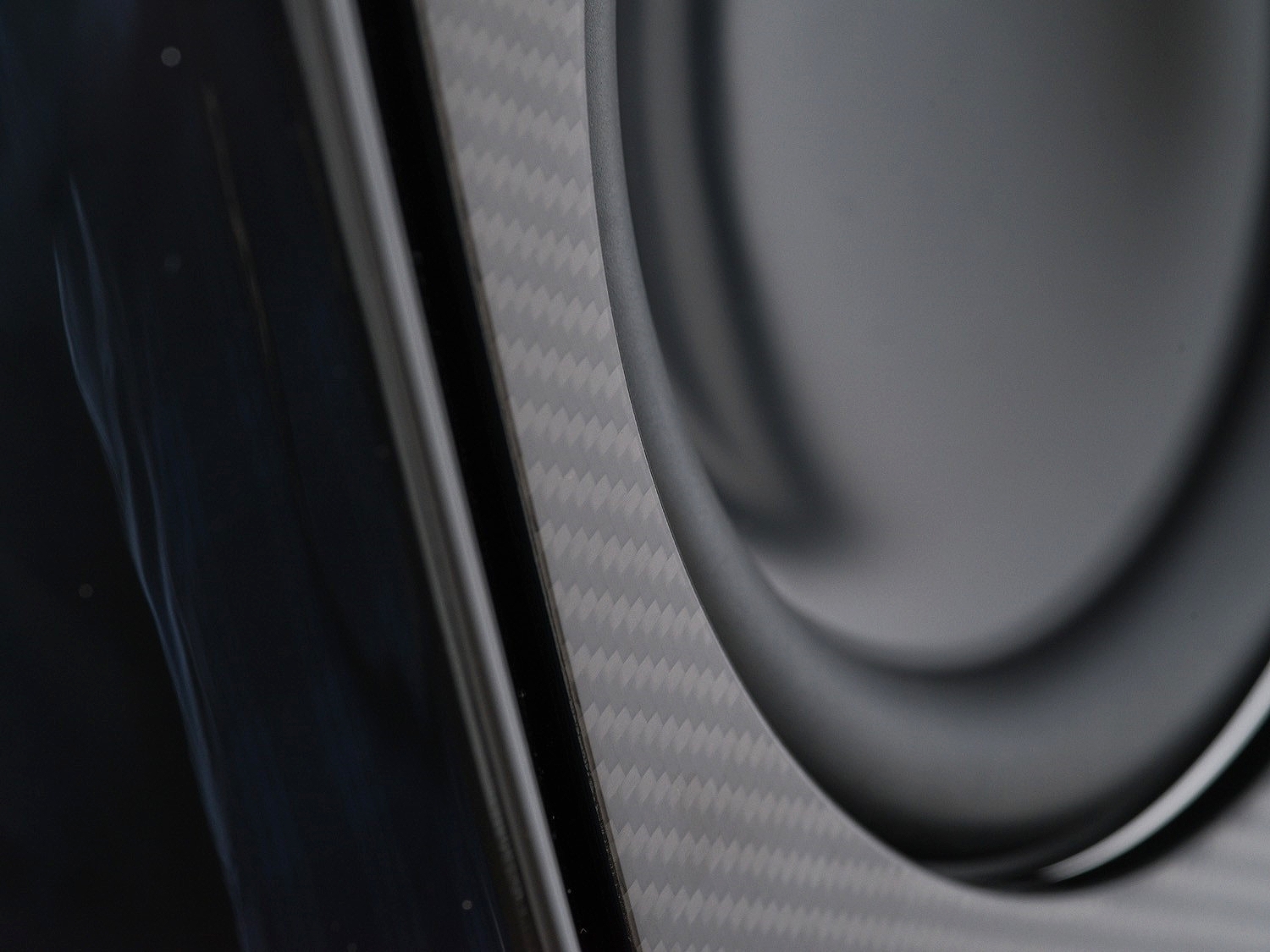

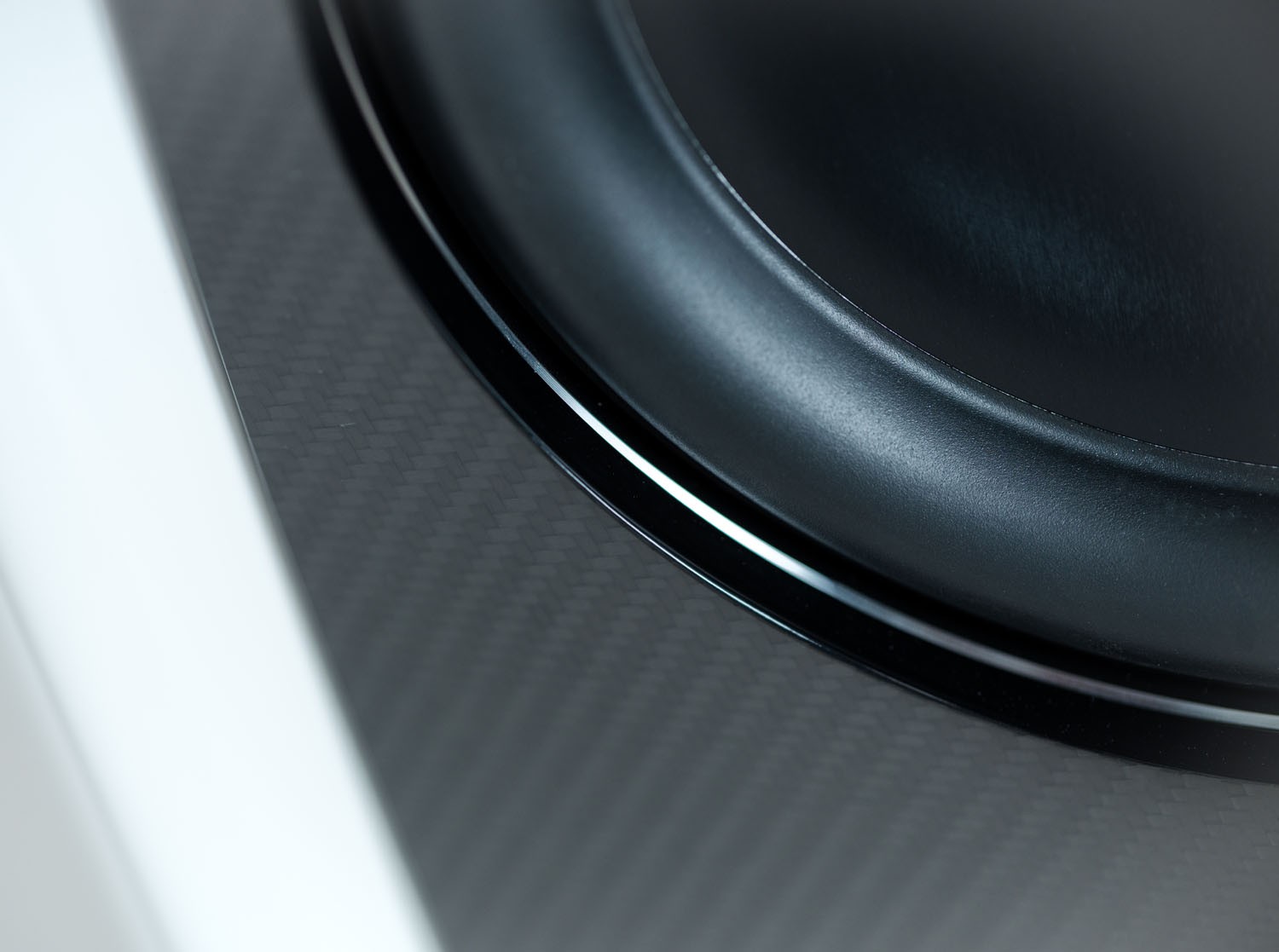

Bass Units

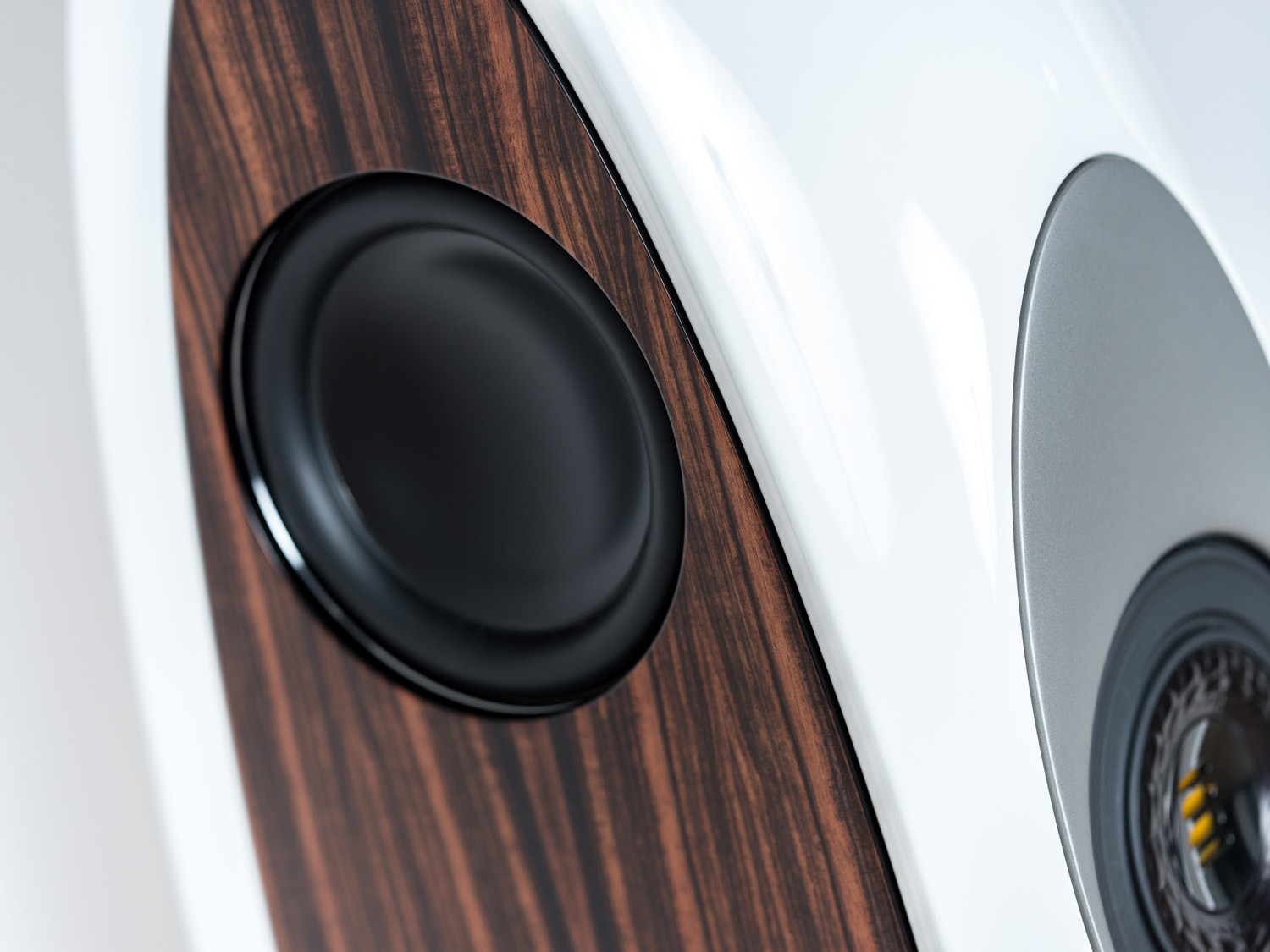

Four 220 mm woofers, installed in a pulse-compensated configuration, ensure exceptional bass delivery in any room.

  ELAC Concentro M - Bass Units
