ELAC FS 409

AudioStereo logo
ELAC FS 409 black high gloss finish

6300

  << variante >>
ELAC FS 509 VX-JET Stereo Setup
ATC SCM 50 SL Stereo Setup
ATC SCM 100 SL Stereo Setup
FS 509 VX-JET SCM 100 SL

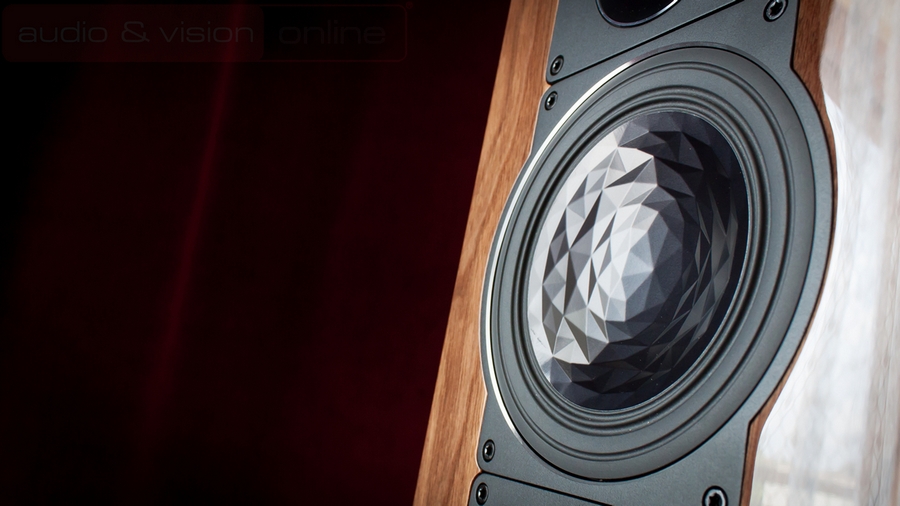

  • TT180AS-XR: difuzoare bass cu membrane sandwich hartie-aluminiu "Crystal"

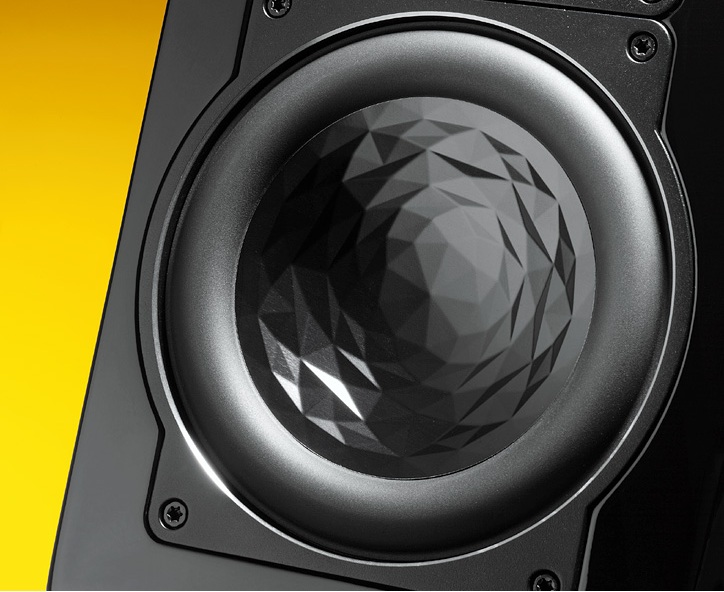

  • MT150AS-XR: difuzor medii cu membrana sandwich hartie-aluminiu "Crystal"

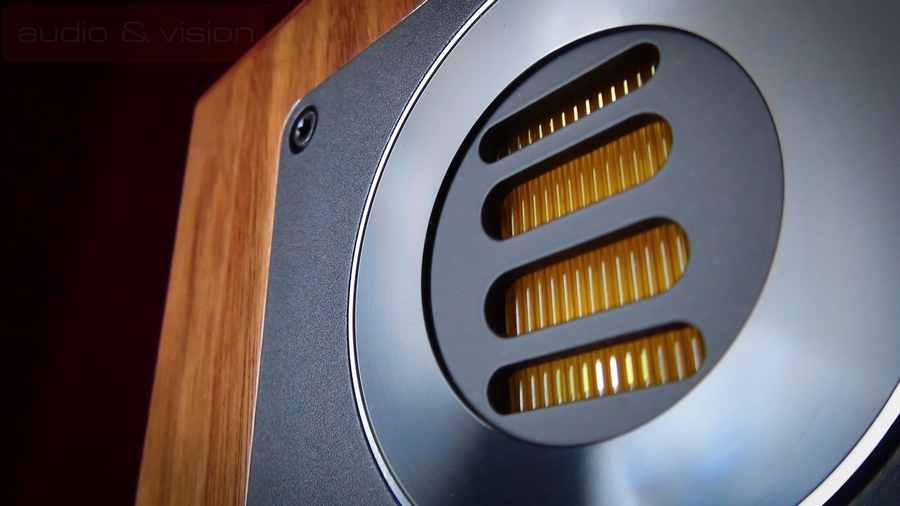

  • JET V: tweeter cu tehnologie Air-Motion-Transformer (folded foil)

FS 409: Combining traditional elegance with modern style

A loudspeaker concept that could not be more traditional. The key element is the new midrange drive unit of the FS 409. Combined with the JET 5, it presents an open sound that incorporates the acoustic characteristics of the surrounding space while maintaining excellent resolution. Superior … with every key and in every room.

Specifications
Dimensions H × W × D
1180 × 290 × 380 mm
290 × 380 mm base plate



Weight
32,5 kg
Principle
3½-ways, bass reflex
Woofer
2 × 180 mm AS-XR cone (mag. shielded)
Midrange
1 × 150 mm AS-XR cone
Tweeter
1 × JET V (mag. shielded)
Recom. Amplifier Power
at Nominal Impedance
40-450 W / channel
Crossover Frequency
140/ 360 / 2,700 Hz
Sensitivity
89 dB / 2.83 V / 1 m
Nominal Impedance
suitable for amplifiers (from ... to)
4 Ohm
4 ... 8 Ohm
Minimum Impedance
3.4 Ohm / 105 Hz
Frequency Range acc. to IEC 268-5
28··· 50,000 Hz
Nominal / Peak Power Handling
200 / 280 W
Finishes
ELAC FS 407 brochure
