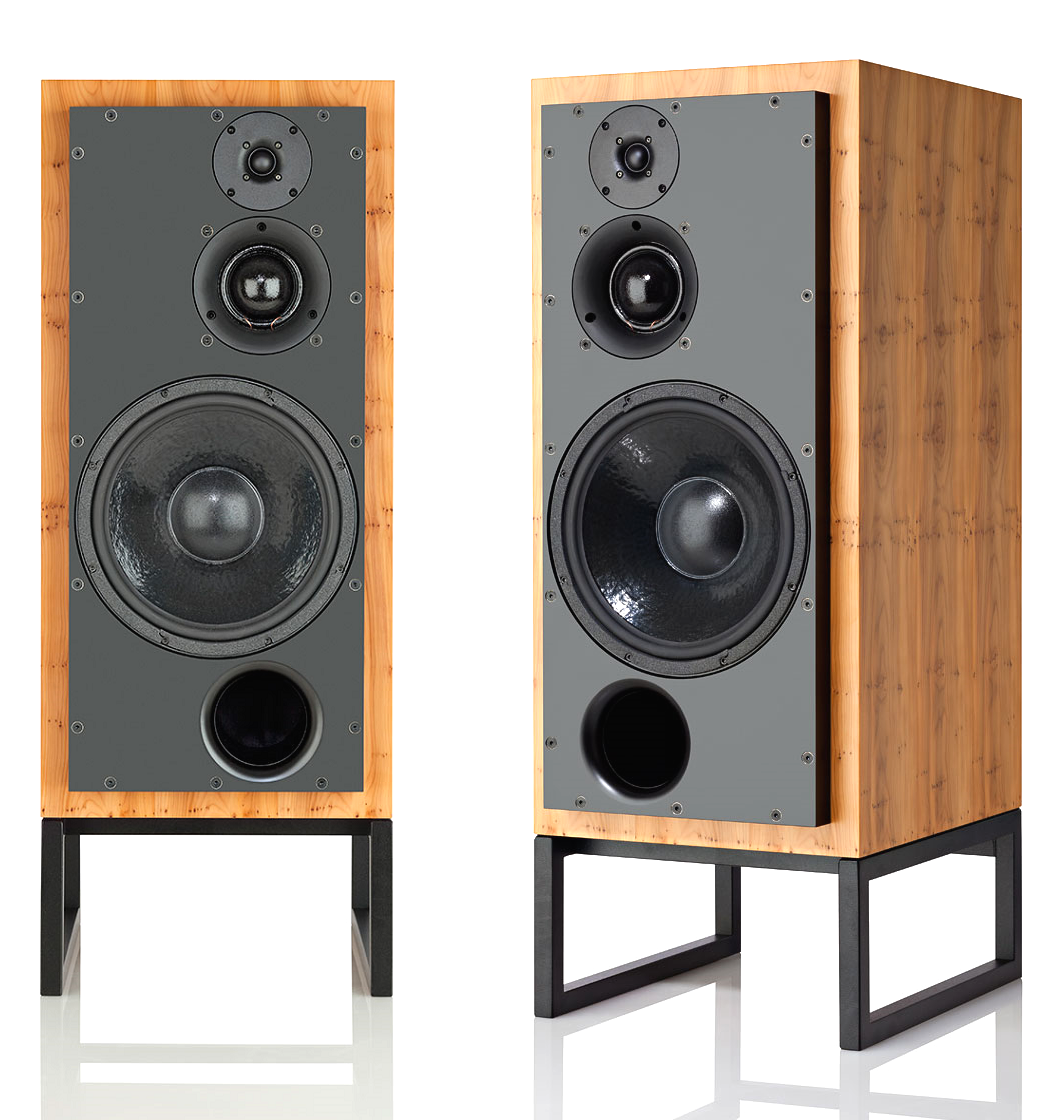

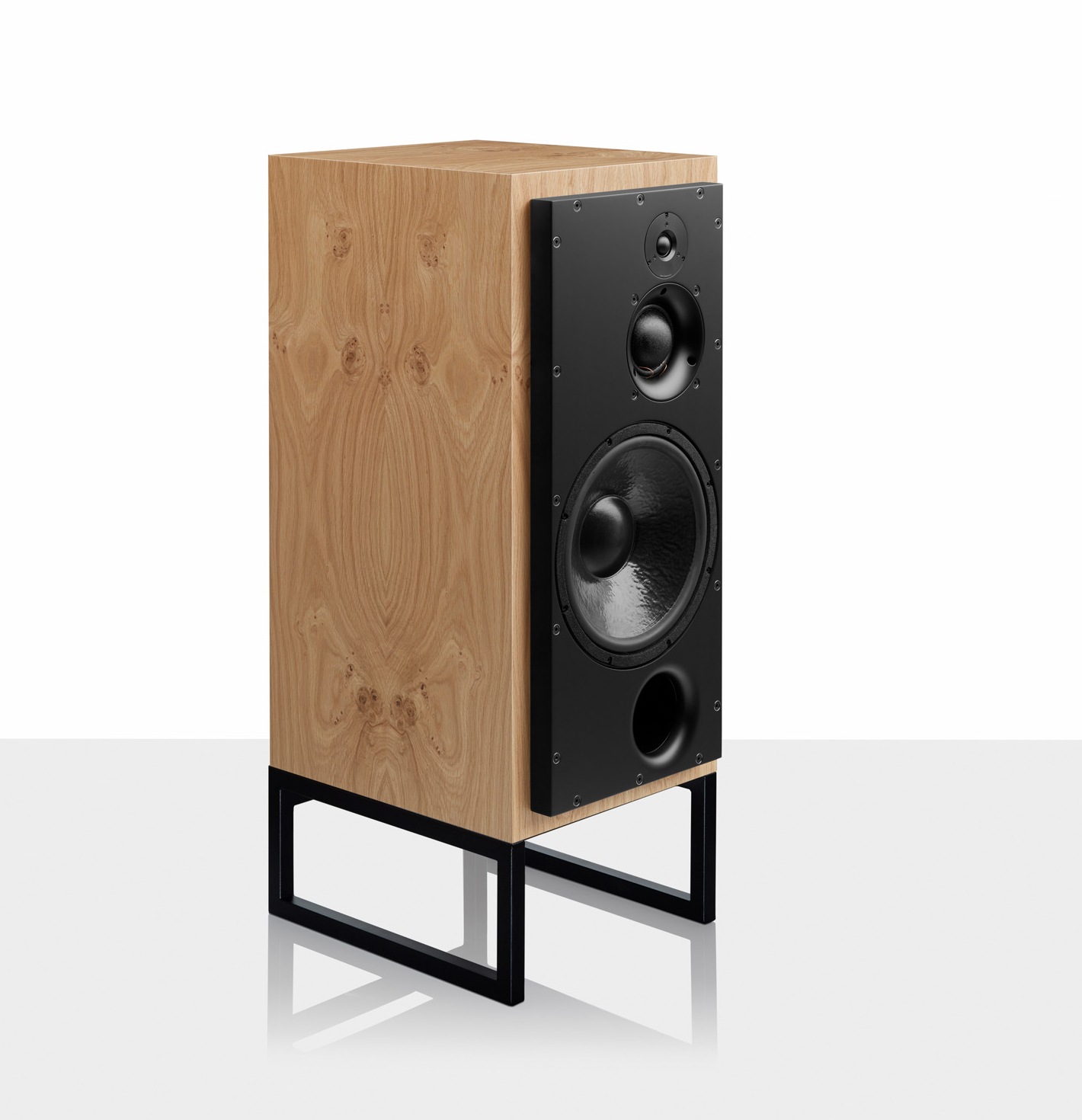

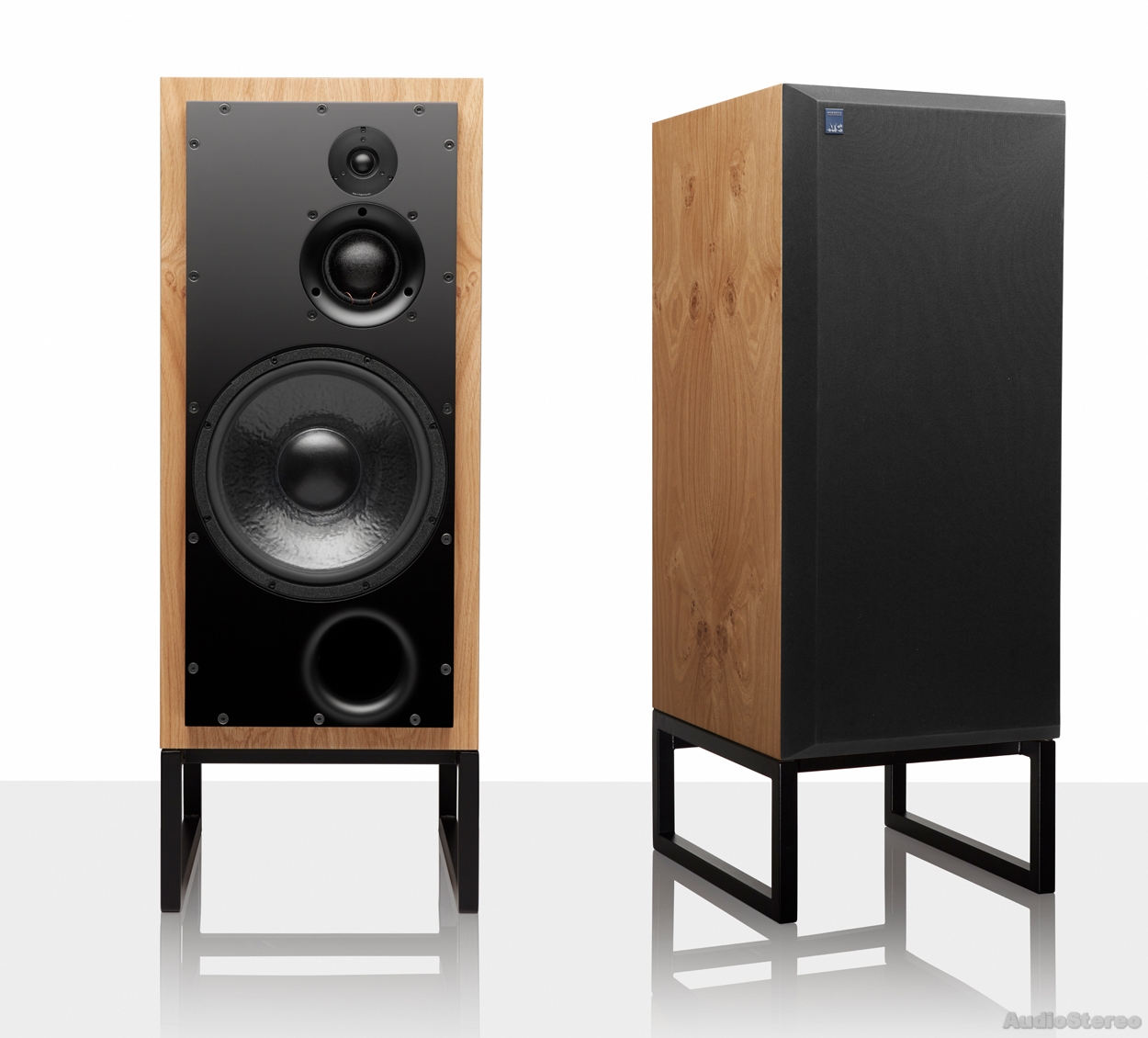

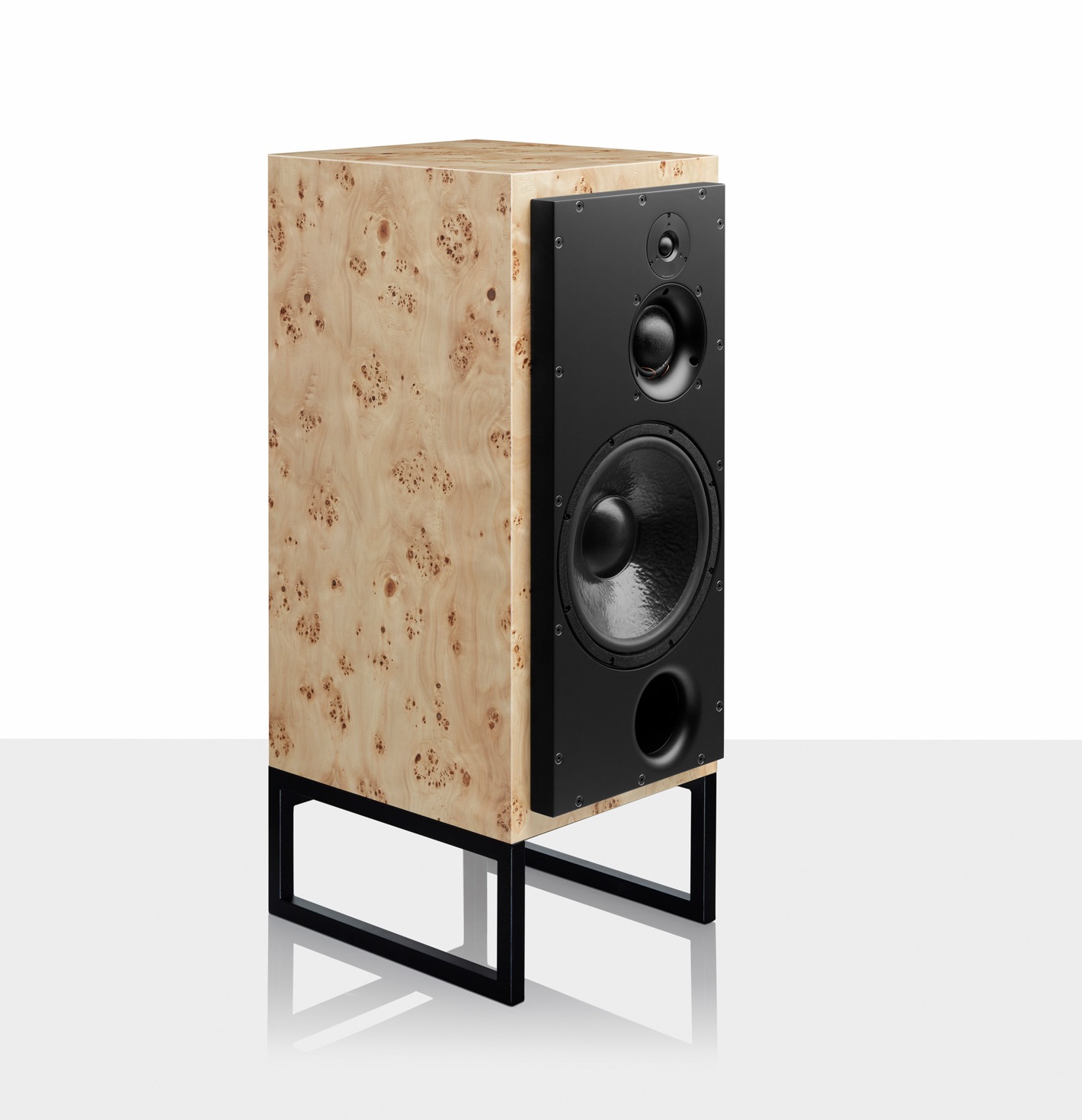

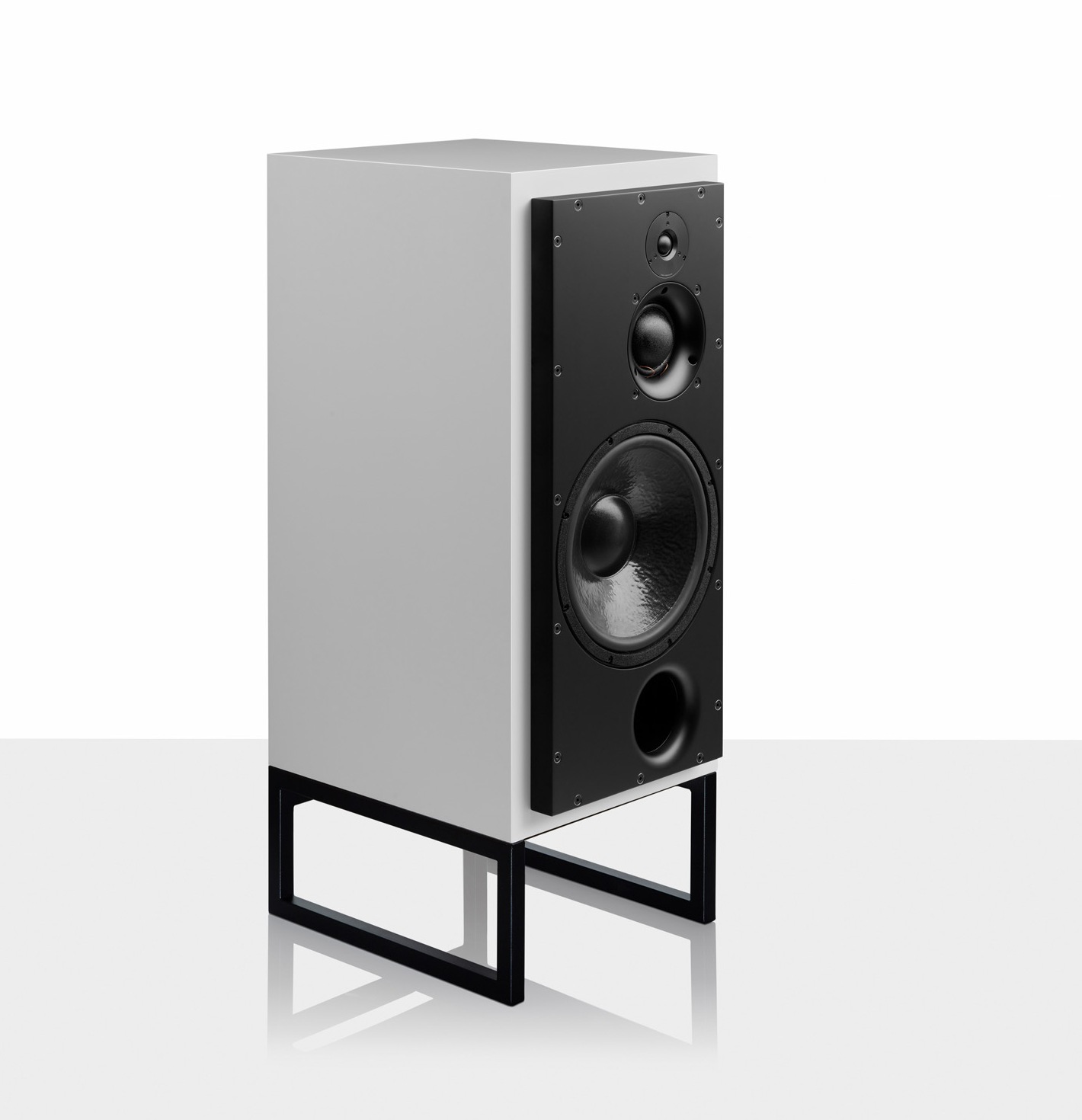

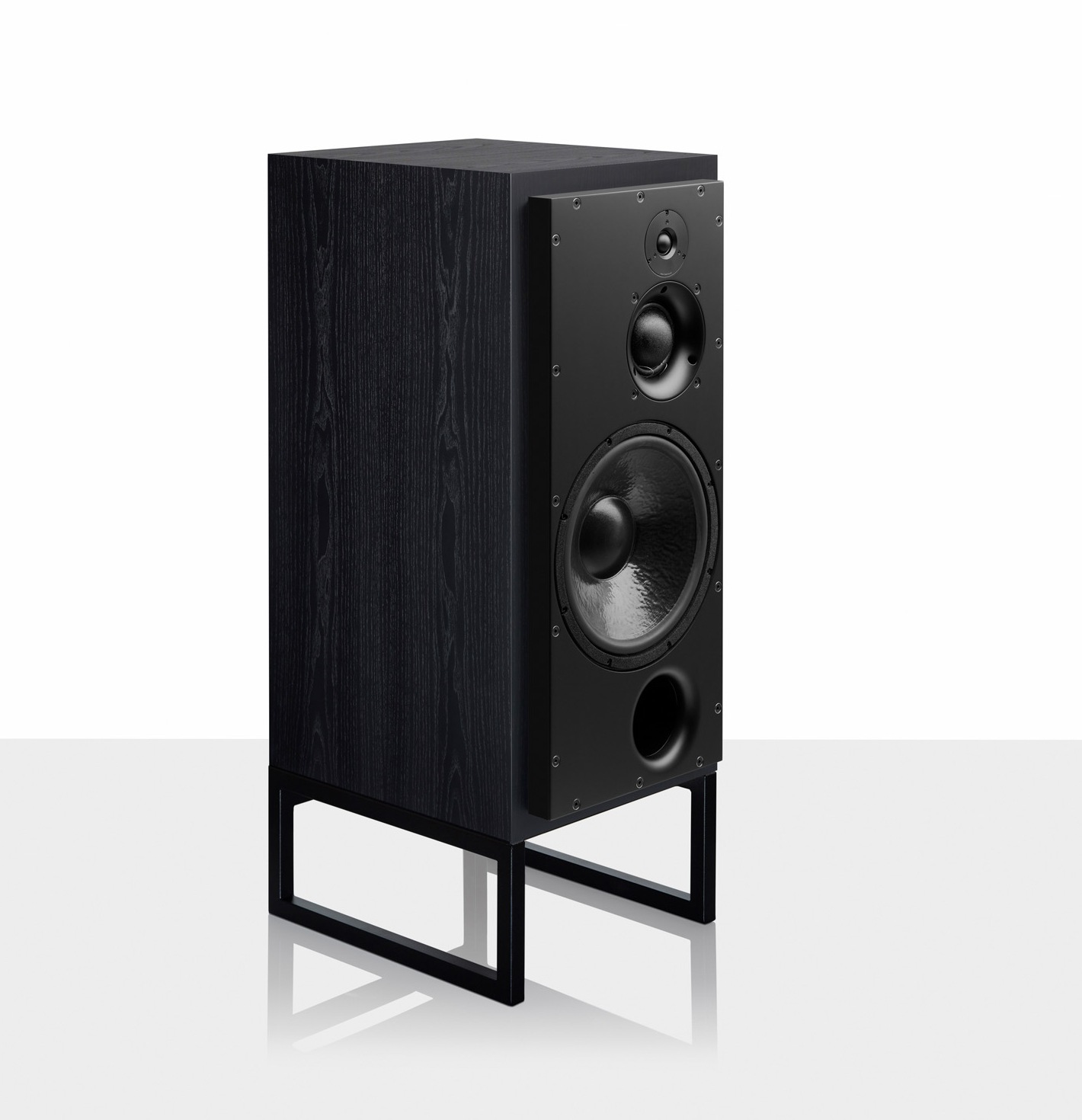

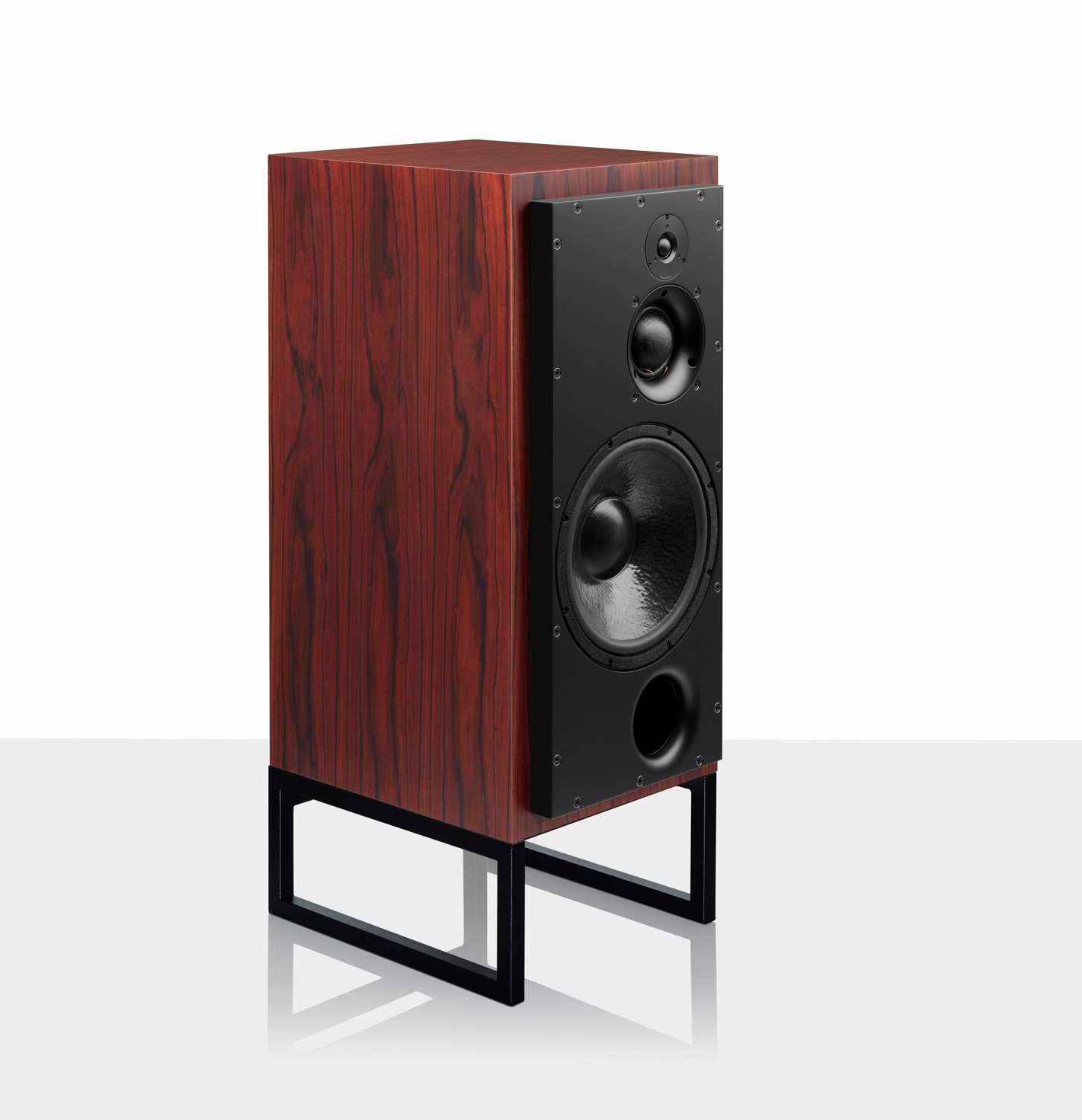

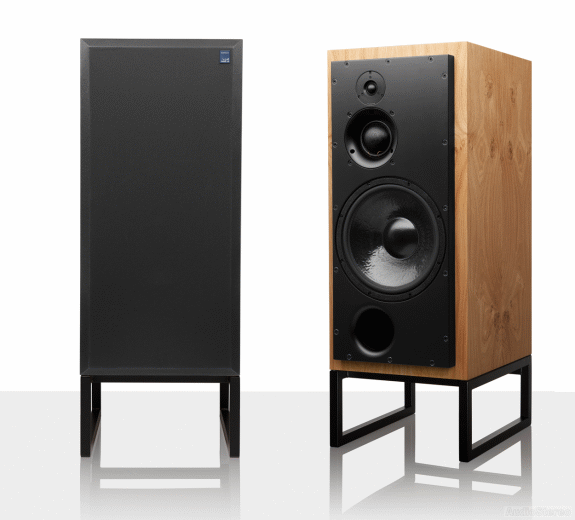

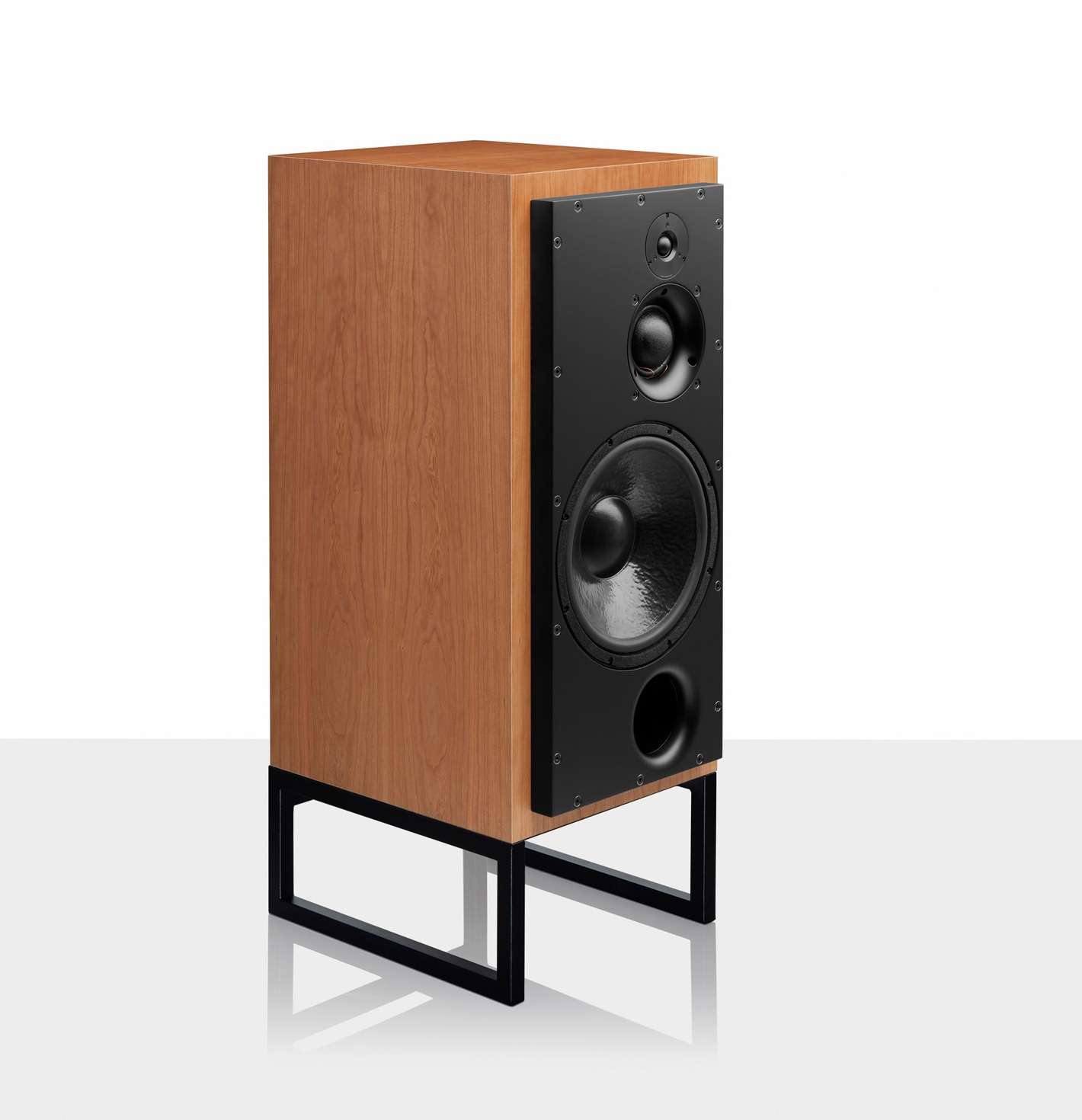

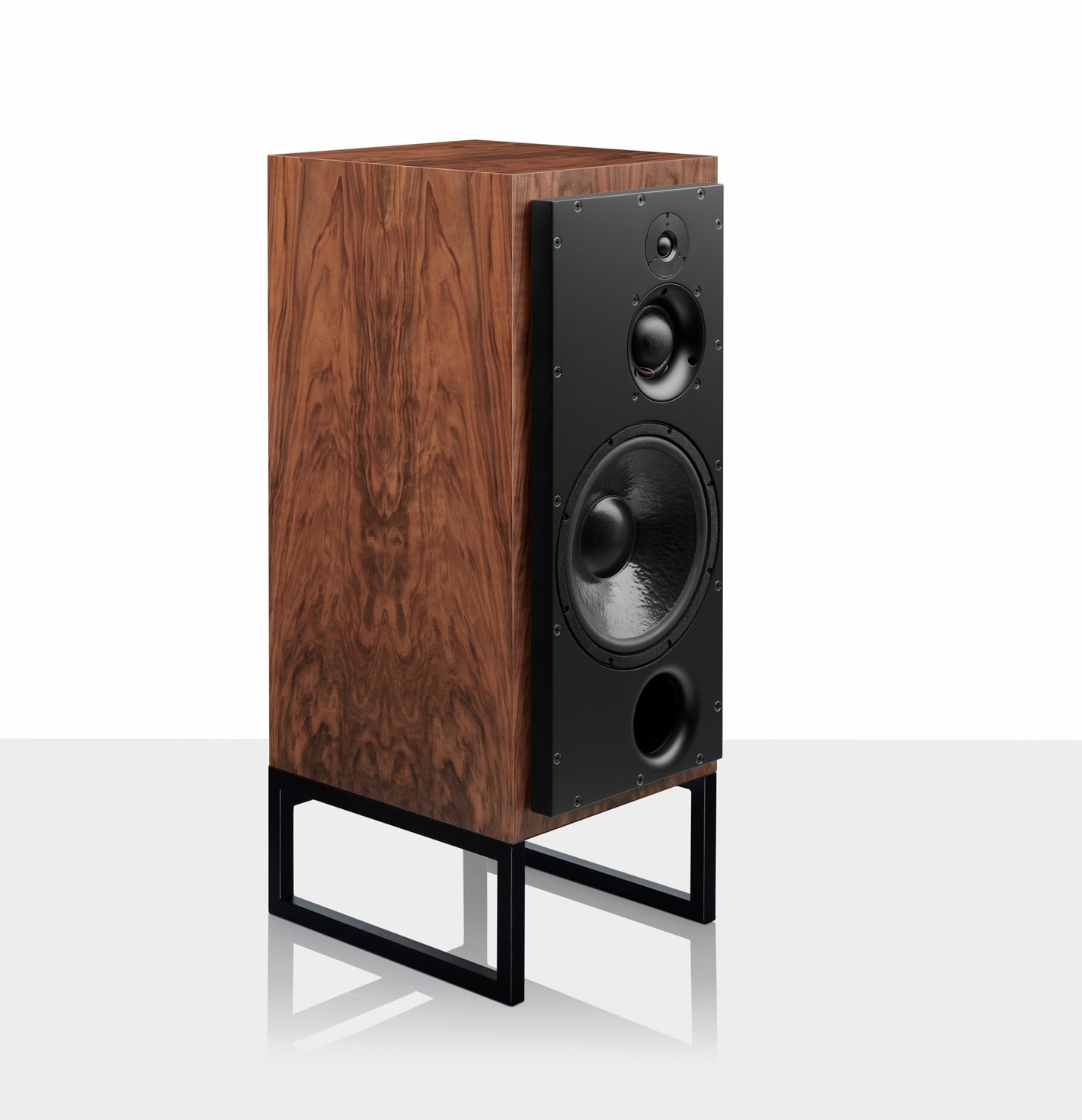

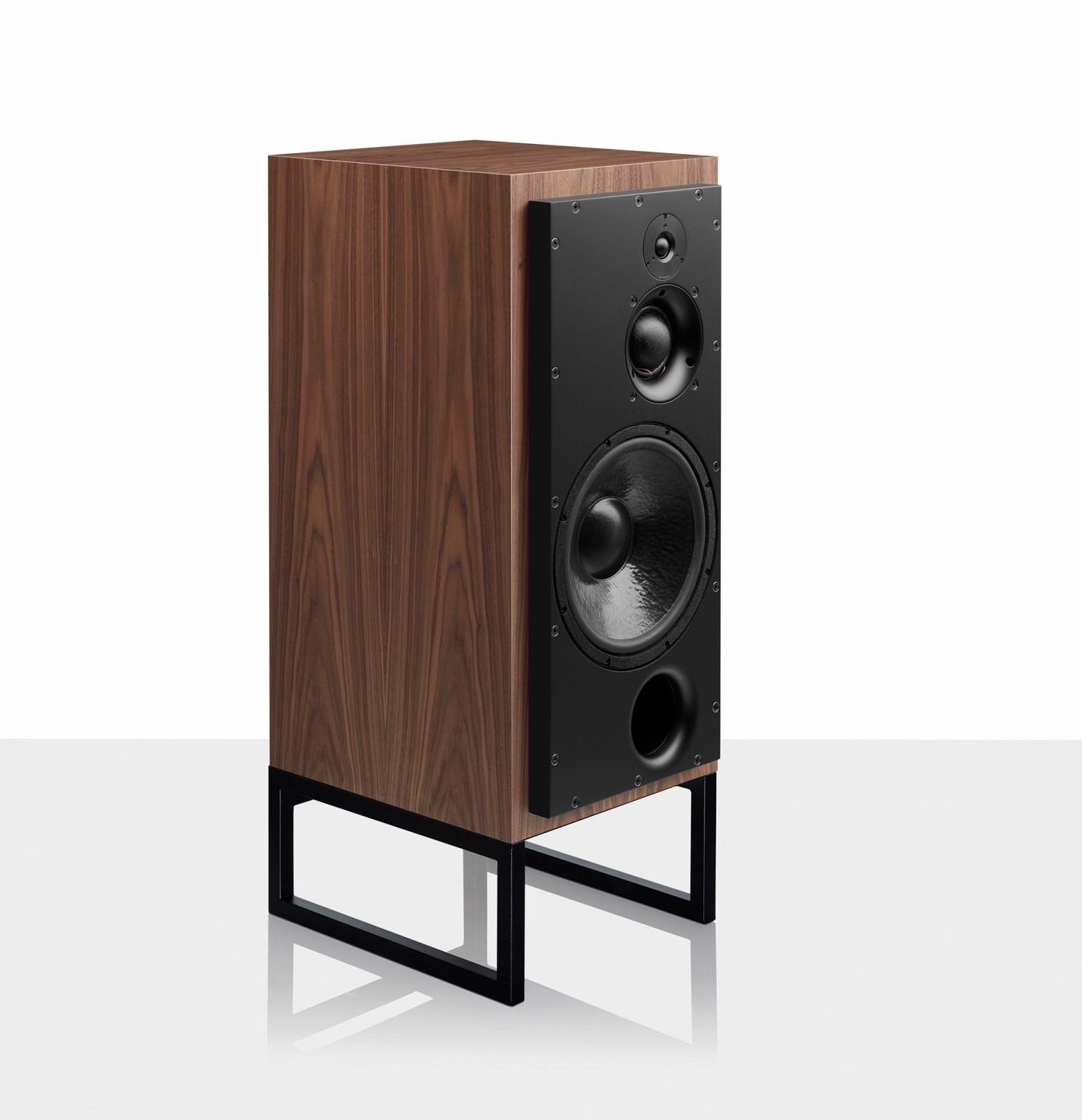

ATC SCM 100 SL - Classic Series
£3410
call
  << variante >>
ATC SCM 150 SL ELAC Spirit of Music CE ELAC FS 509 VX-JET Stereo Setup
SCM 150 SL Spirit Of Music CE FS 509 VX-JET

ATC SCM 100 SL Features:

  • New ATC designed and built dual suspension no ferrofluid 25mm Super Dome tweeter
  • ATC 75mm Super Dome midrange
  • Latest 314mm SL Spec Bass driver
  • Massive ATC motor assembly
  • Wide, even dispersion for pin-point imaging
  • The SCM 100 SL are designed to perform at their best with the finest quality hi-fi equipment.
  • Like their smaller brother, the SCM 50 SL, the monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S Super Dome midrange driver. However, recent modifications that include an upgraded tweeter and enhanced port profile have brought about further improvements in all perform-ance parameters.
  • Bass performance is equally impressive, thanks to ATC’s 12″ professional level bass driver that incorporates the company’s unique Super Linear Magnet technology.
  • Stands included in delivery.
ATC SCM 100 SL 25mm Dual Suspension Super Dome Tweeter ATC SCM 100 SL 75mm Dual Suspension Super Dome Midrange
25mm Dual Suspension Super Dome Tweeter 75mm Dual Suspension Super Dome Midrange
ATC SCM 100 SL 314mm SL Super Linear Bass
314mm SL Super Linear Bass

Specifications

Drivers: HF 25mm ATC Neodymium, Mid 75mm ATC Super Dome, LF 314mm ATC Super Linear
Amplitude Linearity ±2dB: 65Hz – 17kHz
Frequency Response -6dB: 35Hz – 22kHz (freestanding, no room gain)
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 88dB @ 1W @ 1m
Max continuous SPL @1m: 115dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Connectors: Binding Posts/ 4mm banana plugs, tri-wire capable
Recommended Power Amplifier: 100 to 1500 Watts (see ATC SPA2-150)
Nominal Impedance: 8 ohms
Cabinet Dimensions (HxWxD): 834 x 400 x 530 mm (1034mm height with included stand)
Weight: 57kg


ATC SCM 100 SL brochure
