ELAC FS 507 VX-JET

AudioStereo logo
ELAC FS 507 VX-JET black high gloss finish
call
9900
  << variante >>
ELAC FS 509 VX-JET Stereo Setup
ATC SCM 50 SL Stereo Setup
ATC SCM 100 SL Stereo Setup
FS 509 VX-JET SCM 100 SL

  • TT180AS-XR: doua difuzoare Low/Bass de 180mm cu membrana sandwich hartie-aluminiu Crystal pentru excursie marita si distorsiuni minime
  • VX-JET: sistem de difuzoare midrange-tweeter concentrice si coplanare - midrange inelar (honeycomb aluminiu) si tweeter JET III
  • Controlul dispersiei: difuzorul coaxial de medii-inalte VX-JET poate fi pozitionat prin ajustarea unui buton. Boxa ofera astfel posibilitatea ajustarii paternului de dispersie in concordanta cu acustica incaperii dar si cu preferintele auditoriului.



FS 507 VX-JET: Innovation and elegance

Some call it elegant, some find it just beautiful. The look of the FS 507 VX-JET doesn´t polarize, it knows how to appeal. Straight lines covered by a highgloss finish. Visual reservation to emphasize the most important – the acoustical experience.

An idea, inspiring from the first moment and after times, generates just one thing: fascination! The FS 507 VX-JET fascinates by innovation like its big brother but it embodies this on its own way.



Specifications

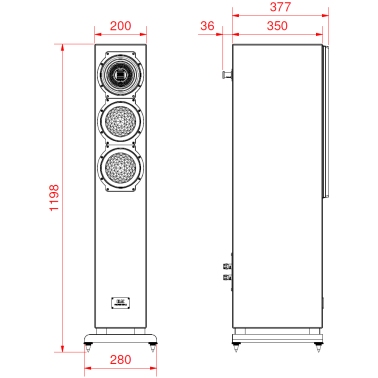

Dimensions H × W × D
1198 × 200 × 350 mm Details
280 × 413 mm base plate
Weight
30 kg
Principle
3½-way, bass reflex
Woofers
Bass Ports
2 × 180 mm AS-XR cone
1 × 100 mm (down firing)
Midrange
1 × 50 mm / 105 mm Ø AS-XR
honeycomb ring radiator
Tweeter
1 × JET III (mag. shielded)
Recom. Amplifier Power at Nominal Impedance
60-500 W / channel
Crossover Frequency
180 / 550 / 2,700 Hz
Sensitivity
89 dB / 2.83 V / 1 m
Nominal Impedance suitable for amplifiers (from ... to)
4 Ohm 4 ... 8 Ohm
Minimum Impedance
3.5 Ohm / 95 Hz
Frequency Range acc. to IEC 268-5
26 ··· 50,000 Hz
Nominal / Peak Power Handling
220 / 300 W
Finishes
black high gloss
ELAC FS 507 VX-JET - Brochure


VX-JET coaxial and coplanar Midrange-Treble Driver System

The VX-JET is a unique combination of a flat (nomex honeycomb with crystal membrane) ring radiator midrange driver and a concentrically arranged JET tweeter. The innovation of the VX-JET is the variably adjustable position of the driver, therefore the name VX-JET.

By means of an continuously adjusting knob at the rear side of the speaker the whole VX-JET driver may be moved 8 mm out (in front of the baffle) or 8 mm in (behind the baffle). By varying the position of the VX-JET, the directivity pattern of the mid-/highfrequency range can be adjusted. The result is not a variation of the sound of the speaker but a variation of the ratio between direct and reflected sound at the listening position. For the first time the VX-JET allows a constant spaciousness over a number of different rooms and listening distances.

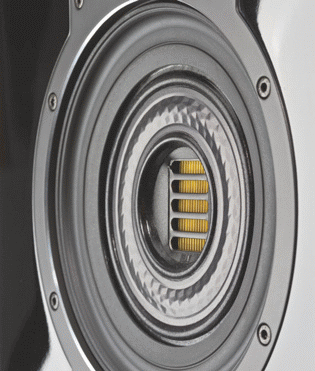

  ELAC 507 VX-JET ring radiator tweeter-midrange adjustment
ELAC VX-JET - Balancing between direct and reflected sound
By continuously varying the position of the VX-JET the directivity pattern of the mid-high frequency range can be adjusted.

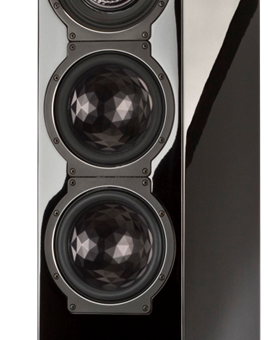

Bass Units

Two 180mm woofers are in charge of the lower frequency range. The combination of crystal technology and the impressive drive system do present an accurate, lifelike reproduction of sound. In cooperation with the VX-JET no detail will be undiscovered. All speaker drivers are equipped with an aluminum die cast frame.

ELAC FS 509 VX-JET - Crystal Low/Bass drivers
