ATC SCM 150 SL

AudioStereo logo

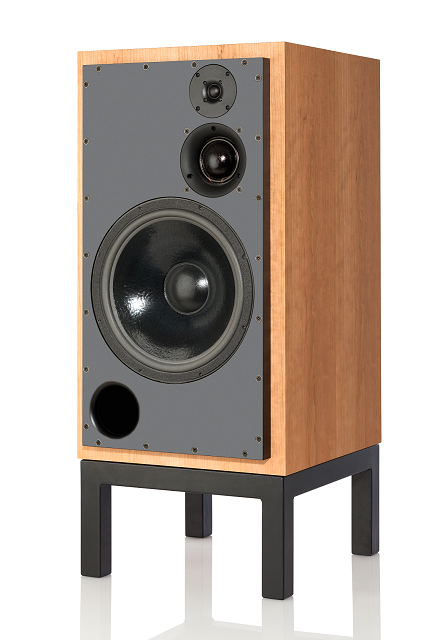

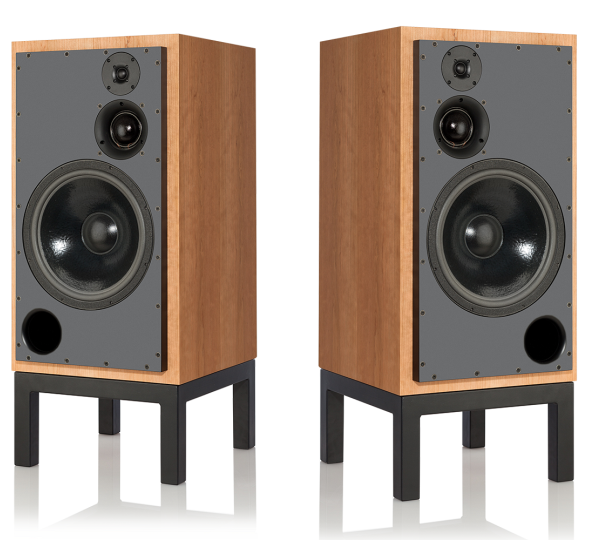

ATC SCM 150 SL - Classic Series
£19500 / £23175
( passive / active )
  << variante >>
ATC SCM 100 SL ELAC Spirit of Music CE ELAC FS 509 VX-JET Stereo Setup
SCM 100 SL Spirit Of Music CE FS 509 VX-JET

ATC SCM 150 SLT Active - STEREO (Germany) review

ATC SCM 150 SLT Active

ATC SCM 150 SLT Active - STEREO (Germany) review
  • The broad-shouldered British speaker let us feel this efficiency from the very first second when Ray Brown's masterpiece "Soular Energy" or "That's all Piano" with Gene Harris played. It was a performance that awakened memories of accelerations previously only experienced in supercars, only to bring the shimmering impulses to a complete stop in the next moment. Brown's double bass stood large and voluminous – though without the slightest inclination to drone – as well as vivid in height, stage width and depth and yet sharply outlined in front of the audience.
  • Belafonte at Carnegie Hall showed all facets of this extraordinary singer and entertainer and the "Cotton Fields" made you forget that the recording was made in 1959. The passion with which the American, subtly but effectively supported by the bass, performs his songs is simply impressive.
  • If you've always wanted to hear a clarinet, "El Choclo" and "Maria", played by Giora Feidman, captured live in a New York church, with their gentle, almost tender wind sounds, are the ideal introduction, especially since the guitar sounds played along with them are perfectly integrated.
  • Verdict: A three-way active loudspeaker in a class of its own. The ATC SCM 150 A SLT hides most sophisticated technology behind its rather simple exterior. With its perfect neutrality in tone, crazy dynamic reserves and deep, dry bass foundation it is just as convincing as it is with its precise spatial imaging.

ATC SCM 150 SLT Active - Hi-Fi+ (UK) review

ATC SCM 150 SLT Active

ATC SCM 150 SLT Active - Hi-Fi+ (UK) review
  • Despite their size they are remarkably easy speakers to accommodate inasmuch as they are not as fussy about placement as the average large passive design. Specifically you can put them quite close to a rear wall and, room shape allowing, this doesn’t result in exaggerated bass.
  • Play a few more pieces and you discover that they merely reflect the original balance with greater accuracy than usual and that some recordings have considerably more low end on them than others.
  • It’s worth noting that my listening room is not very wide, 3.5m for the most part, yet on this system never is there any sense of the bass being too much. Even with less than 50cm to rear walls, and not a lot more to the sides, the bass is very tidy and controlled.
  • The new tweeter is a boon as well, as it’s more revealing yet sweeter than the SEAS unit it replaces. This speaker used to be a bit 'warts an' all' for anything less than smooth, clean electronics and recordings, but the tweeter has made the 150 a whole lot more charming without losing transparency.

ATC EL 150 PSL - Stereoplay (Germany) review

ATC EL 150 PSL

ATC EL 150 PSL - Stereoplay (Germany) review
  • SCM EL 150 PSL:
    Sound: "absolute top class"
    Price / Performance: "high end"
    "Ultimate transparent, neutral and plastic playing box with precise, yet musical bass and perfect timing. Performs quietly and brutally loud superior, but is sophisticated in installation and room acoustics."

ATC EL 150 ASL - Hi-Fi News (UK) review

ATC EL 150 ASL

ATC EL 150 ASL - Hi-Fi News (UK) review
  • The EL 150As sounded relaxed and effortless, with a delicate touch when playing piano and acoustic intruments that had been recorded in a natural perspective.
  • These imposing ATCs deliver up-front detail, a tight and punchy bass, with seeminglt endless headroom that allows you to listen in to regordings as if analysing them under a magnifying glass.
  • With high quality source material they will have you riveted to your seat, captivated.
  • They can fill a huge acoustic space with high quality sound at high SPLs, moreover they come with a lifetime warranty.For those able to afford them, they should definitely be high on the list of speakers to be auditioned.

ATC EL 150 PSL - Stereo & Video (Russia) review

ATC EL 150 PSL

ATC EL 150 PSL - Stereo & Video (Russia) review
ATC EL 150 PSL - Stereo & Video (Russia) review

ATC SCM 150 SL Features:

  • ATC 375mm Super Linear bass driver
  • ATC 75mm Dual Suspension Super Dome midrange
  • ATC 25mm Dual Suspension ‘S-Spec’ tweeter
  • Massive ATC motor assembly
  • Wide, even dispersion for pin-point imaging
  • The SCM150 SL is designed to perform at their best with the finest quality hi-fi equipment.
  • Like their smaller brother, the SCM50 ASL & 100 the monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S Super Dome midrange driver. However, recent modifications that include an upgraded tweeter and enhanced port profile have brought about further improvements in all perform-ance parameters
  • Bass performance is equally impressive, thanks to ATC’s 15″ professional level bass driver that incorporates the company’s unique Super Linear Magnet technology
  • Stands included in delivery
ATC SCM 150 SL 25mm Dual Suspension ‘S-Spec’ Tweeter ATC SCM 150 SL 75mm Dual Suspension Super Dome Midrange
25mm Dual Suspension ‘S-Spec’ Tweeter 75mm Dual Suspension Super Dome Midrange
ATC SCM 150 SL 375mm SL Super Linear Bass
375mm SL Super Linear Bass

Specifications

SCM150ASL (Active)

Drivers: HF 25mm ATC Neodymium, Mid 75mm ATC Super Dome, LF 375mm ATC Super Linear
Amplitude Linearity ±2dB: 60Hz – 17kHz
Frequency Response -6dB: 25Hz–25kHz (freestanding, no room gain)
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Max continuous SPL @1m: 117dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Input Connector: XLR
Input Sensitivity: 1V
Input Impedance: >10k ohms balanced XLR
Amplifier Output: HF 50 Watts RMS MF 100 Watts RMS LF 200 Watts RMS
Overload Protection: LDR tweeter protection, plus active FET MGR (amplifiers)
Power Requirements: Voltage: 100, 115, 230 (factory set)
Frequency: 50/60Hz
Power: Nominal 90 Watts, Driven 350 Watts
Cabinet Dimensions (HxWxD): 884 x 498 x 568 mm including amps (stands add 200mm to height)
Weight: 75kg

SCM150SL (Passive)

Drivers: HF 25mm ATC Neodymium, Mid 75mm ATC Super Dome, LF 375mm ATC Super Linear
Amplitude Linearity ±2dB: 60Hz – 17kHz
Frequency Response -6dB:  25Hz–25kHz (freestanding, no room gain)
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 91dB @ 1W @ 1m
Max continuous SPL @1m: 117dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Input Connector: Binding Posts/4mm banana plugs
Recommended Power Amplifier: 100 to 1500 Watts (see ATC P1, P2, SIA2-150 Mk2)
Nominal Impedance: 8 ohms
Cabinet Dimensions (HxWxD): 884 x 498 x 568 mm (stands add 200mm to height)
Weight: 67.2kg


ATC SCM 150 SL user manual



ATC SCM 150 SL Stereo Setup ATC SCM 150 SL Stereo Setup

ATC P2 Power Amplifier DAYENS Ecstasy IV Power Amplifier
P2
ATC SIA2-150 Integrated Amplifier Cyrus Mono X 300 Signature
SIA2-150 Mono X 300 Sig
